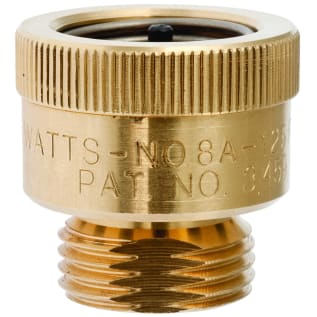

WATTS® 0061877 8 Series Vacuum Breaker, 3/4 in, Female Hose Thread x Male Hose Thread, Brass Body
- Body Material: Brass
- Dimensions: 1-1/2 in L x 1-1/2 in H
- Domestic/Import: Import
- End Style: Female Hose Threaded x Male Hose Threaded
- Nominal Size: 3/4
- Pressure Rating: 125
- Series: 8 Series
- Temperature Rating: 180
WATTS® No Lead Vacuum Breaker, Series: 8 Series, 3/4 in Nominal, Female Hose Thread x Male Hose Thread, 125 psi, 180 deg F, Brass Body, 1-1/2 in L x 1-1/2 in H
Series 8A Hose Connection Vacuum Breakers permit the attachment of portable hoses to hose thread faucets and prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of a brass body construction (8A) or chrome finish (8AC), stainless steel working parts, a rubber diaphragm and disc, and a draining stem. Series 8A's non-removal feature prevents the removal of the valve once installed. It is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses. Check with local inspection authorities for installation requirements. Maximum Pressure:125 psi (8.6 bar).
- Features
- Stainless steel working parts for longevity
- Durable rubber diaphragm and disc provides positive seating
- Standardly equipped to allow sill cock to be drained
- Do not use where discharge of water is objectionable
- Series 8 is tested and certified under ANSI A112.1.3 (ASSE 1011), which precludes use under continuous pressure, this valve should only be used in areas where spillage of water will not cause damage
- Device should only be installed on approved sill cocks containing at least four full threads
- Non-removable once installed
- Standard/Approvals: ANSI A112.1.3, ASSE 1011, cCSAus B64.2, ISO 9001-2008, IAPMO/UPC Listed
