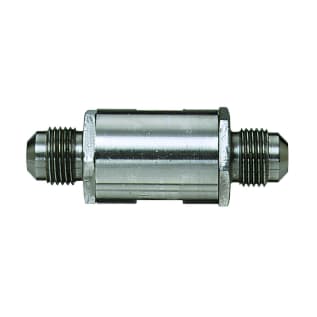

WATTS® 0061654 SD2 Dual Check Valve, 3/8 in, SAE MNPT, 316 Stainless Steel Body
- Body Material: 316 Stainless Steel
- Dimensions: 3 in L
- Domestic/Import: Domestic
- End Style: SAE MNPT
- Nominal Size: 3/8
- Pressure Rating: 200
- Series: SD-2
- Temperature Rating: 110
WATTS® Lead Free Dual Check Valve, Series: SD2, 3/8 in Nominal, SAE MNPT, 200 psi, 110 deg F, 316 Stainless Steel Body, 3 in L
The Watts SD2 is a dual check designed for the protection of the water supply from carbon dioxide gas and carbonated water. These substances can flow from post-mix beverage systems and are very acidic. If the acidic water comes in contact with copper tubing or copper pipe, it will cause the leaching of copper salts into the water supply. The dissolved copper if ingested can cause nausea, abdominal pain and in some cases vomiting. The SD-2 prevents the reverse flow of potentially contaminated water into the potable water supply due to back pressure backflow and is used for continuous or intermittent pressure conditions. The Watts SD-2 is recommended for use on Post-Mix Carbonated Beverage Equipment and dispensing equipment for tea and coffee.
- Features
- Certified to ANSI/NSF Standard 18, manual food and beverage dispensing equipment
- 316 stainless steel body for corrosion resistance
- All rubber compounds comply with FDA food additive regulations
- Streamlined body design minimizes pressure loss and cavitation
- Endurance tested for more than 500,000 pumping cycle
- Shock tested for more than 100,000 pumping cycle
- For use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Standard/Approvals: ANSI/NSF 18, ASSE 1032, CSA B64.3
