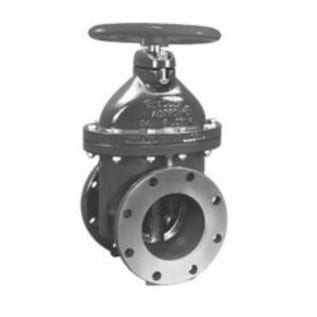

Mueller Co A-2360-6-3 Non Rising Stem Resilient Wedge Gate Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator

5129 MFG #: A-2360-6-3
$1,038.06 / ea
Mueller Co A-2360-6-3 Non Rising Stem Resilient Wedge Gate Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator
  • Actuator Type: Handwheel
  • Body Material: Cast Iron
  • End Style: Flanged
  • Finish: Epoxy Coated
  • Inlet to Outlet Length: 8
  • Nominal Size: 3
  • Pressure Class: 125
  • Pressure Rating: 250
  • Softgoods Material: Rubber Stem O-Ring, Celcon Washer
  • Top to Inlet Center: 12.38
  • Trim Material: Bronze Stem
  • Type: Non Rising Stem Resilient Wedge

Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 3 in Nominal, Flanged End Style, 250 psi Pressure, 125 lb Pressure Class, Handwheel Actuator, 8 in Inlet to Outlet Length, 12.38 in Top to Inlet Center, Cast Iron Body, Bronze Stem Trim, Rubber Stem O-Ring, Celcon Washer Softgoods, Epoxy Coated

QTY
Add to List
  • Features
  • Iron wedge, symmetrical and fully encapsulated with molded rubber, no exposed iron
  • Triple O-ring seal stuffing box with fourth O-ring serving as dirt seal
  • Handwheel 2 in square wrench nut open left or open right
  • Standard/Approvals: UL Listed|AWWA C509|C550|ANSI B16.1|FM Approved
