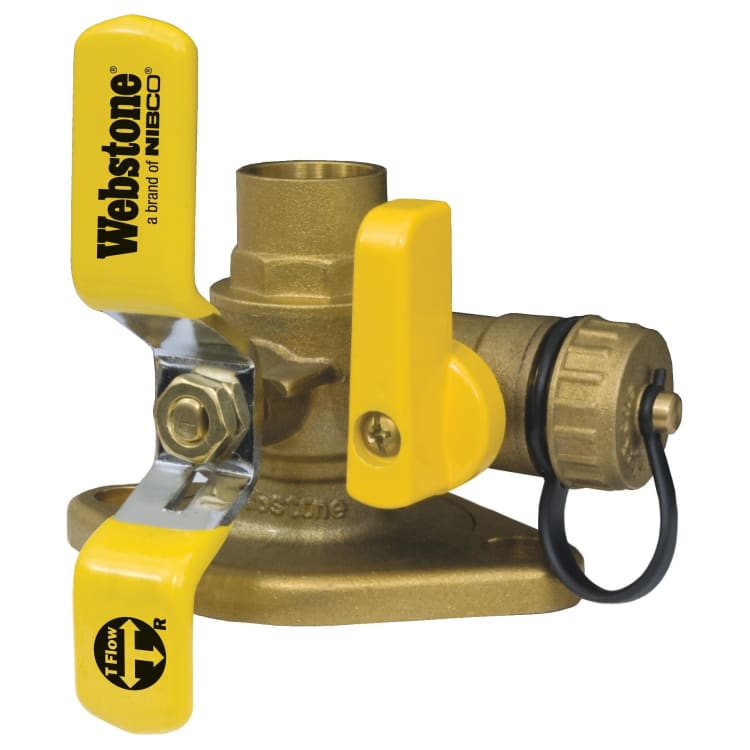

Webstone The Isolator® 51414 5141 Standard Uni-Flange Ball Valve, 1 in Nominal, C x Rotating Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import

281333 MFG #: 51414
$185.90 / ea
Webstone The Isolator® 51414 5141 Standard Uni-Flange Ball Valve, 1 in Nominal, C x Rotating Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
  • Actuator Type: Lever Operated
  • Ball Material: HCP Brass
  • Body Material: Forged Brass
  • End Style: C x Rotating Flanged
  • Inlet to Outlet Length: 3-1/4
  • Media: Water/Glycol Mixture
  • Nominal Size: 1
  • Port Type: Full
  • Pressure Rating: 600 psig WOG
  • Series: 5141
  • Softgoods Material: PTFE
  • Temperature Rating: 100
  • Top to Inlet Center: 2-5/8
  • Trim Material: Brass Stem and PTFE Seat

Webstone The Isolator®, 51414, Ball Valve, Standard Uni-Flange, Series: 5141, 1 in Nominal, C x Rotating Flanged End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1 in Orifice, T-Handle Actuator, 3-1/4 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 3-1/4 in H Dimensions, Import

Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

QTY
Add to List
  • Features
  • The features and benefits you trust in our original Isolator® line with two versatile enhancements
  • 3-way ball purges before or after the pump
  • Eliminate seven leak path
  • Unique uni-body design is preserved
  • Compatible with popular press tools
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Guaranteed for life
  • Save 63 minute of labor
  • Replace eight component
  • Fits virtually any standard circulator pump
  • Flange feature a conical inlet to minimize turbulence
  • Easily isolate the pump for replacement
  • Prevent electrolysis and eliminate galvanic corrosion
  • Blow-out proof stem
  • First, 360 deg flange rotation that allows for rotation to any deg necessary for your installation
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Available in Lead-Free
  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Standard/Approvals: ASME B16.18
  • INCLUDES: Adjustable Packing Gland, Nuts and Bolts
  • WARRANTY: Limited Lifetime
