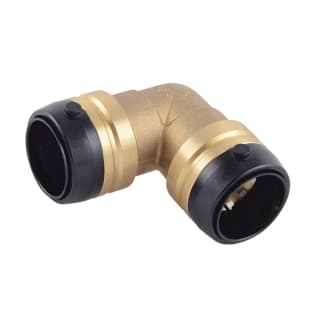

Sharkbite® UXL0235 Large Diameter Elbow, 1-1/4 in Nominal, Push-to-Connect End Style, DZR Brass, Domestic

1533917 MFG #: UXL0235
$45.50 / ea
Sharkbite® UXL0235 Large Diameter Elbow, 1-1/4 in Nominal, Push-to-Connect End Style, DZR Brass, Domestic
  • Domestic/Import: Domestic
  • End Style: Push-to-Connect
  • Fitting/Connector Type: 90 deg Elbow
  • Material: DZR Brass
  • Nominal Size: 1-1/4
  • Pressure Rating: 200
  • Temperature Rating: 200
  • Type: Large Diameter
  • Finish: Natural Brass/Polished Chrome

Sharkbite® Elbow, Large Diameter, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, Push-to-Connect, 200 psi, 200 deg F, DZR Brass, Natural Brass/Polished Chrome, Domestic

Used to make 90 deg connection between two pieces of pipe. Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes.

QTY
Add to List
  • Features
  • Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
  • Approved to be used underground and behind walls without access panels
  • No special tools, crimping, glue or soldering is needed
  • Can be installed in wet lines
  • Large diameter fittings (1-1/4 to 2 in) require a stiffener (sold separately) when connecting to PEX pipe
  • Remove using a disconnect clip or disconnect tongs (both sold separately)
  • For PEX applications, stiffeners are sold separately
  • Standard/Approvals: ASSE 1061|ASTM E119|ASTM E84|CAN/CSA B125.3|cUPC Listed|IPC Listed|NSF/ANSI 372|NSF/ANSI/CAN 61|UL 263|ULC S101|ULC S102.2|UPC Listed|PROP65: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm - www.P65Warnings.ca.gov
  • WARRANTY: 25 years
