PHD

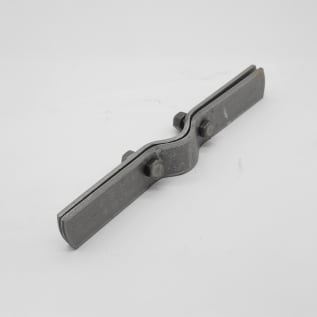

PHD 550 0100PL Pipe Riser Clamp, 1 in Pipe, 220 lb, Carbon Steel, Plain, Domestic

1507 MFG #: 550 0100PL
$40.45 / ea
PHD 550 0100PL Pipe Riser Clamp, 1 in Pipe, 220 lb, Carbon Steel, Plain, Domestic
  • Dimensions: 8-3/4 in L
  • Domestic/Import: Domestic
  • Finish: Plain
  • Load Capacity: 220
  • Material: Carbon Steel
  • Pipe Size: 1
  • Series: FIG 550
  • Torque Rating: 19

PHD Pipe Riser Clamp, Series: FIG 550, 1 in Pipe, 220 lb, 19 ft-lb, Carbon Steel, Plain, 8-3/4 in L, Domestic

Designed for supporting and stabilizing vertical pipe runs, This product is not intended for use with hanger rods. Clamp is designed for standard iron pipe O.D. and must be considered when sizing other types of piping.

QTY
Add to List
  • Features
  • 3/8 x 1-1/4 in bolt
  • Low carbon steel
  • When possible the clamp should be placed under a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be per industry standards
  • Standard/Approvals: ANSI/SP 69/58 (Type 8), Federal A-A-1192A (Type 8), FM Approved
