Webstone

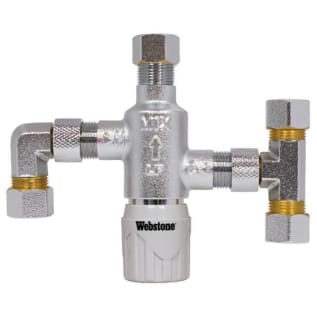

Webstone H-77211W 7721W Ultra-Compact Thermostatic Mixing Valve, 3/8 in Nominal, Compression End Style, 150 psi Pressure, 0.5 gpm Flow Rate, Forged DZR Brass Body, Import

1428018 MFG #: H-77211W
$155.50 / ea
Webstone H-77211W 7721W Ultra-Compact Thermostatic Mixing Valve, 3/8 in Nominal, Compression End Style, 150 psi Pressure, 0.5 gpm Flow Rate, Forged DZR Brass Body, Import
  • Nominal Size: 3/8
  • Dimensions: 3.8 in L x 3.29 in H
  • Type: Ultra-Compact
  • Series: 7721W
  • Finish: Polished Chrome
  • Flow Rate: 0.5
  • Pressure Rating: 150
  • Body Material: Forged DZR Brass
  • Softgoods Material: EPDM
  • Trim Material: Stainless Steel
  • Media: Water
  • Domestic/Import: Import
  • End Style: Compression
  • Temperature Rating: 95 to 120

Webstone Thermostatic Mixing Valve, Lead Free Ultra-Compact, Series: 7721W, 3/8 in Nominal, Compression, 150 psi, 95 to 120 deg F, 0.5 gpm, Media: Water, Forged DZR Brass Body, Stainless Steel Trim, EPDM, Polished Chrome, 3.8 in L x 3.29 in H, Import

Webstone offers a wide array of mixing valves and accessories for a host of applications and system requirements. This particular series of valves is suitable for point-of-use applications, specifically those where a more discrete aesthetic is desired. Designed for use with water in residential or commercial residential plumbing, commercial plumbing systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

QTY
Add to List
  • Features
  • Videos
  • Mixes hot and cold water to pre-set output temperature
  • Ideal for discrete under sink installations
  • Standard/Approvals: ASPE Specified|cUPC Listed|IAPMO to ASSE 1070|NSF/ANSI 61 and 372|PHCC|Prop65: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.
  • INCLUDES: Integral Check Valves, Temperature Locking Handle True, Cold Water By-Pass Fittings and Mounting Bracket
