Eemax™

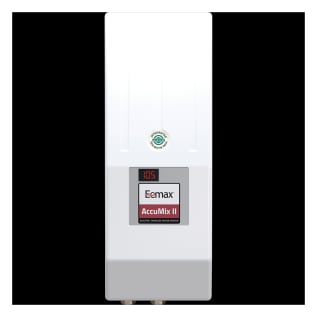

Eemax™ AM004120T AccuMix II™ Multi-Directional Feed Electric Tankless Water Heater With Mixing Valve, 120 V, 3.5 kW Power Rating, 1 ph Phase, 3/8 in Compression Water, 29 A, Commercial

1416238 MFG #: AM004120T
$897.16 / ea
Eemax™ AM004120T AccuMix II™ Multi-Directional Feed Electric Tankless Water Heater With Mixing Valve, 120 V, 3.5 kW Power Rating, 1 ph Phase, 3/8 in Compression Water, 29 A, Commercial
  • Amperage Rating: 29
  • ASME Yes/No: No
  • Color: White
  • Commercial/Residential/Dual: Commercial
  • Dimensions: 5-1/4 in W x 4 in D x 13-3/4 in H
  • Domestic/Import: Domestic
  • Energy Factor: 0.93
  • Flow Rate: 2.5
  • Heating Element: Nickel Chrome
  • Material: ABS
  • Mounting Type: Wall
  • Phase: 1
  • Power Rating: 3.5
  • Pressure Rating: 35 to 150 psi Dynamic
  • Series: AccuMix II™
  • Temperature Rating: 105 to 110
  • Type: Multi-Directional Feed
  • Voltage Rating: 120
  • Water Connection: 3/8 in Compression
  • Wire Size: 10

Eemax™ Electric Tankless Water Heater, Multi-Directional Feed, Series: AccuMix II™, 120 V, 29 A, 3.5 kW, 1 ph, 2.5 gpm, 3/8 in Compression Water Connection, Nickel Chrome Heating Element, 0.93, 10 AWG Wire, Wall Mount, 35 to 150 psi Dynamic, 105 to 110 deg F, ASME Yes/No: No, ABS, White, 5-1/4 in W x 4 in D x 13-3/4 in H, Commercial/Residential/Dual: Commercial, Domestic

QTY
Add to List
  • Features
  • Endless hot water for sensor or metering faucets
  • Unit meets UPC 407.3 requirements when properly installed
  • Self-diagnostics with intelligent controls actively protect heater in installed environment
  • SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
  • Mounts in any orientation for a flexible installation
  • Integrated ASSE 1070 rated mixing valve for code compliant hand washing
  • On demand hot water - No delay
  • Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
  • Endless hot water - No storage capacity to deplete
  • Reduces installation cost and material - No T and P valve required
  • Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
  • Easy Installation - Simple NPT fittings that require no soldering
  • Unit mounts directly to the wall with common hardware
  • Replaceable nickel chrome bare wire cartridge
  • Without thermostat
  • For pre-heated or cold water feed
  • Standard/Approvals: AHRI Certified|ASSE 1070|CAN/CSA-C22.2 64|cULus Listed|NSF/ANSI 372|UPC 407.3|UL 499/E86887/94 V-0 Rated
  • INCLUDES: EX410 Element, EX384-120 Board, EX259B Relay/Contactor and EX278A-KIT ECO
  • WARRANTY: 5 Years Limited on Leaks/1 Year on Parts
