Liberty Pumps®

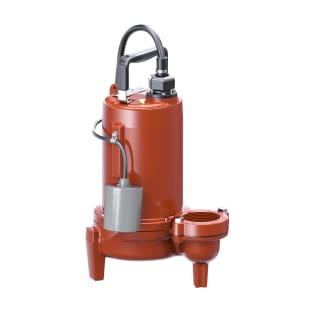

LIBERTY LE71A2-2 AUTOMATIC SEWAGE PUMP 115V 3/4HP 1PH CAPACITIES OF 158 GPM HEADS TO 29'TDH WITH 25' POWE

1396996 MFG #: LE71A2-2
$1,085.00 / ea
LIBERTY LE71A2-2 AUTOMATIC SEWAGE PUMP 115V 3/4HP 1PH CAPACITIES OF 158 GPM HEADS TO 29'TDH WITH 25' POWE
  • Amperage Rating: 12 A Full Load/29.1 A Locked Rotor
  • Bearing Type: Ball
  • Cord Type: SJTW 25 ft
  • Dimensions: 12.5 in W x 18.9 in H
  • Flow Rate: 160
  • Frequency Rating: 60
  • Horsepower: 3/4
  • Impeller Type: Cast Iron 2-Vane Semi-Open
  • Material: Cast Iron
  • Maximum Head: 28
  • Motor Speed: 1725
  • Outlet Size: 2 in Flanged
  • Series: LE70
  • Temperature Rating: 221 deg F Thermal Overload
  • Type: Automatic
  • Voltage Rating: 115
  • Mounting Type: Rail System
  • Phase: 1

Liberty Pumps® Submersible Sewage Pump, Series: LE70, 144 gpm Flow Rate, 2 in Flanged Outlet, 28 ft Maximum Head, 3/4 hp, 115 VAC, 12 A, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SJTW Cord, 2-Vane Semi-Open Impeller, 140 deg F Fluid, Ball Bearing, Cast Iron, 12.5 in W x 18.9 in H Dimensions,

QTY
Add to List
  • Features
  • Videos
  • Cast iron housing and volute
  • 416 stainless steel rotor shaft
  • Oil filled, hermetically sealed motor
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seal
  • Adjustable pumping range
  • Quick connect 25 ft power cord
  • Built-in thermal protection on 1-phase models
  • Single float mechanical level control with series plug for manual bypass operation standard on 1-phase automatic models
  • 2 in solid handling
  • Stainless and brass fasteners
  • Standard/Approvals: cCSAus Certified|SSPMA Certified|PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • WARRANTY: 3 Years Limited
