Holdrite®

Holdrite® HFPTB-NP-0200 HYDROFLAME™ PRO Tub Box, For Pipe 1-1/2 in IPS, 10-3/4 in H, 3 hr Fire Rating, Gray/Black

1359650 MFG #: HFPTB-NP-0200
$40.00 / ea
Holdrite® HFPTB-NP-0200 HYDROFLAME™ PRO Tub Box, For Pipe 1-1/2 in IPS, 10-3/4 in H, 3 hr Fire Rating, Gray/Black
  • Color: Gray/Black
  • Fire Rating: 3
  • For Pipe Size: 1-1/2 in IPS
  • Height: 10-3/4
  • Material: ABS
  • Series: HYDROFLAME™ PRO

Holdrite® Tub Box, Series: HYDROFLAME™ PRO, For Pipe Size: 1-1/2 in IPS, 10-3/4 in Height, Fire Rating: 3 hr, Gray/Black, ABS

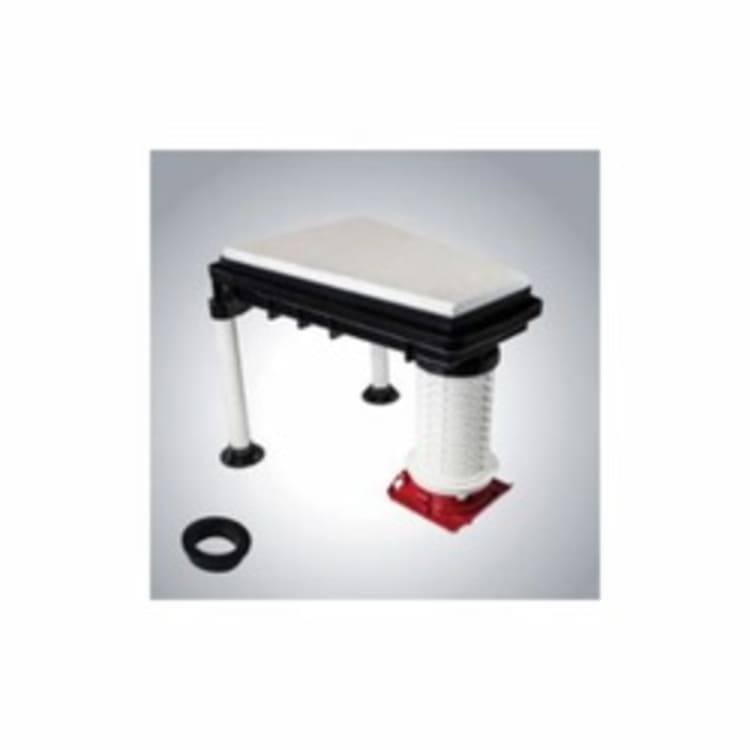

The Holdrite® HYDROFLAME™ PRO Series "Tub Box" is a UL-Listed firestop device for bathtub drains. Metallic or non-metallic drain piping can be used. Thin wall drain piping requires a rubber tub box donut (included with the #HFP-TW-0200 Kit). Nominal IPS sized drain piping does not provide a rubber donut (not included with the #HFP-NP-0200 Kit). The nominal IPS size donut is optional and can be purchased separately (#HFPTB-1.5 NP). Standard tub box assembled height is 10-3/4 in. Kit can be cut shorter or sleeve extensions #HFPE2 can be added to make the tub box taller.

QTY
Add to List
  • Features
  • Built-in fire, smoke and gas protection
  • Provides a water tight slab penetration
  • Accepts 1-1/2 in PVC, ABS, and brass drain pipes using appropriate seal plug
  • Allows for expansion, contraction and movement
  • Built at 10-3/4 in tall
  • Height can be modified in the field
  • 1-1/2 in thin wall drain penetrating pipe
  • Standard/Approvals: ASTM E814, Buy American Act, CAN/ULC S115, cULus Listed, UL 1479, UL Rating W/L/F
