American Standard Brands

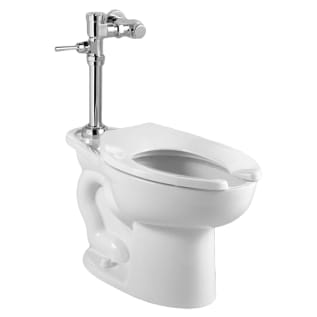

American Standard 2858111.020 Madera™ FloWise® High Efficiency Toilet Without Toilet Seat, Elongated Bowl, 15 in H Rim, 1.1 gpf, White, Import

1346165 MFG #: 2858111.020
$372.00 / ea
American Standard 2858111.020 Madera™ FloWise® High Efficiency Toilet Without Toilet Seat, Elongated Bowl, 15 in H Rim, 1.1 gpf, White, Import
  • Bowl Shape: Elongated
  • Collection: Madera™ FloWise®
  • Domestic/Import: Import
  • Finish/Color: White
  • Flush Rate: 1.1
  • Flushing System: Manual
  • Inlet Spud Size: 1-1/2
  • Material: Vitreous China
  • Mounting Type: Floor
  • Overall Dimensions: 14 in W x 28-1/4 in D x 28-1/2 in H
  • Rim Height: 15
  • Rough-In Size: 10
  • Trapway Size: 2-1/8
  • Type: High Efficiency

American Standard Toilet, High Efficiency, Madera™ FloWise®, 1.1 gpf Flush, Elongated Bowl, 15 in Rim Height, 10 in, 12 in Rough-In, 2-1/8 in Trapway, Floor Mount, 1-1/2 in Inlet Spud, Manual Flush, 28-1/2 in H x 14 in W x 28-1/4 in D, Vitreous China, White, Import

1000 g of miso 1.1 gpf (when using a 1.1 gpf American Standard flush valve). 31% water savings when compared to a standard 1.6 gpf toilet. 14% water savings when compared to a 1.28 gpf HET.

QTY
Add to List
  • Features
  • Powerful direct-fed siphon jet action
  • Conventional, fully glazed 2-1/8 in trapway
  • Condensation channel
  • 10 x 12 in water surface area
  • 100% factory flush tested
  • Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
  • Piston operation delivers superior flush accuracy and repeatability
  • Piston valve remains closed and does not need to be reset after loss of water pressure
  • ADA compliant non-hold open handle provides automatic shut-off after every flush
  • Positive seal ensures leak-free performance
  • No external volume adjustment
  • Durable chrome plated cast brass construction is ideal for commercial applications
  • Chloramine-resistant EPDM seals
  • Can be installed left or right hand
  • 25 to 80 psi operating pressure
  • Flow requirement: 25 gpm
  • Standard/Approvals: ADA Compliant, ANSI/ASME A112.19.2, ASME A112.19.2-2008/CSA B45.1-08, ASSE 1037, Water Efficient
  • INCLUDES: 047007-0070A Inlet Spud (furnished with Bowl), (2) 481310-100 Bolt Caps with Retainers(furnished with Bowl), 1 in IPS Angle Stop with Back-Flow Protection and Vandal-Resistant Cap, Sweat Solder Kit Including Cover Tube and Wall Flange, High Back Pressure Vacuum Breaker with Down Tube, Spud Coupling and Flange
