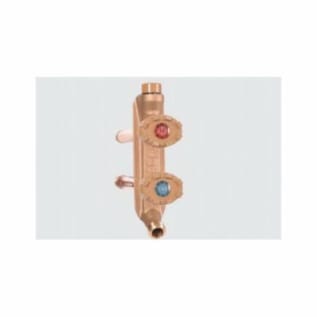

Woodford® V22W-10-MH Model V22 Freezeless Vertical Mount Hot and Cold Wall Faucet, 1/2 in, Wirsbo® PEX Tube, 10 in THK Wall, 125 psi, Domestic
- Dimensions: 15/16 in Dia Inlet
- Domestic/Import: Domestic
- End Style: Wirsbo® PEX Tube
- Finish: Rough Brass
- Nominal Size: 1/2
- Pressure Rating: 125
- Series: Model V22
- Temperature Rating: 120
- Type: Freezeless Vertical Mount
- Wall Thickness: 10
- Handle Type: Oval
Woodford® Hot and Cold Wall Faucet, Freezeless Vertical Mount, Series: Model V22, 1/2 in Nominal, Wirsbo® PEX Tube, 10 in Wall Thickness, 125 psi, Oval, 120 deg F, Rough Brass, 15/16 in Dia Inlet, Domestic
The freezeless Model 22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The Model 22 contains an integral backflow AS protection device and does not require and add-on vacuum breaker.
- Features
- Videos
- This unit offers anti-siphon protection and pressure relief valves
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- Built-in vent float style vacuum breaker
- Faucet drains automatically when hose is removed
- EPDM packing to prevent leaking
- Oval, powder-coated, die cast aluminum handle
- Stainless steel seat eliminates wire draw
- Standard "O" size seat washer
- No lead solder
- 3/4 in male hose thread
- Rough brass for end wall installation
- Not intended for continuous use
- Standard/Approvals: ASSE 1019|CSA Certified|cUPC Listed|UPC/IAPMO Listed
