LEGEND

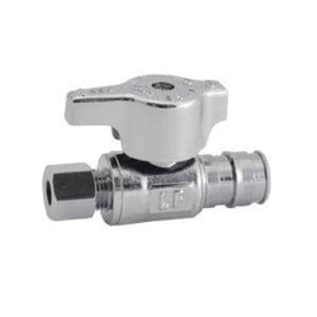

LEGEND 114-705NL T-596NL 1/4 Turn Straight Supply Stop Valve, 1/2 x 1/4 in, F1960 PEX x OD Compression, Brass Body, Import

1277693 MFG #: 114-705NL
$15.14 / ea
LEGEND 114-705NL T-596NL 1/4 Turn Straight Supply Stop Valve, 1/2 x 1/4 in, F1960 PEX x OD Compression, Brass Body, Import
  • Body Material: Brass
  • Dimensions: 2.28 in L
  • Domestic/Import: Import
  • End Style: F1960 PEX x Compression
  • Finish: Polished Chrome
  • Nominal Size: 1/2 x 1/4
  • Pressure Rating: 125
  • Series: T-596NL
  • Temperature Rating: 120
  • Trim Material: Brass/EPDM
  • Type: 1/4 Turn

LEGEND Supply Stop Valve, 1/4 Turn Straight, Series: T-596NL, 1/2 x 1/4 in Nominal, F1960 PEX x OD Compression, 125 psi CWP, 120 deg F, Handle Actuator, 1.1 in Inlet to Outlet Length, 2028 in Top to Inlet Center, Brass Body, Brass Trim, EPDM Rubber Seat, Chrome Plated, Import

QTY
Add to List
  • Features
  • Lead-free design is suitable for all no lead potable water installations, in full compliance of the National lead-free plumbing law
  • Proprietary cold-expansion PEX inlet connection utilizes an exaggerated center barb and PEX reinforcing ring (not included) for a permanent, leak-free connection
  • Quarter-turn, self-cleaning ball valve design resists mineral and scale buildup, assuring positive-shutoff and re-opening
  • The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs
  • Compact lead-free forged brass chrome plated bodies are both durable and decorative
  • An ideal upgrade replacement for worn, leaking stops that won't close completely
  • Standard/Approvals: ASTM B124 UNS C46400/F1960|ASTM F1807|ISO Certified|Truesdail Labs Certified to ANSI/NSF 61-G|IAPMO/UPC Listed|US Federal Public Law 111-380 (National Lead Free Plumbing Law)
