Uponor

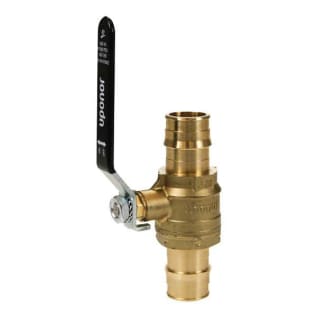

Uponor ProPEX® A3201515 Ball Valve, 1-1/2 in, PEX, 200 psi, Brass Body

1269792 MFG #: A3201515
$79.20 / ea
Uponor ProPEX® A3201515 Ball Valve, 1-1/2 in, PEX, 200 psi, Brass Body
  • Actuator Type: Lever Handle
  • Ball Material: Brass
  • Body Material: Brass
  • Dimensions: 5.68 in L x 2.07 in W
  • Domestic/Import: Import
  • End Style: PEX
  • Nominal Size: 1-1/2
  • Port Type: Full
  • Pressure Rating: 200
  • Softgoods Material: PTFE Seal/EPDM/FKM O-Ring
  • Temperature Rating: 200
  • Trim Material: Brass

Uponor ProPEX® Ball Valve, 1-1/2 in Nominal Size, PEX, 200 psi, 200 deg F, Full Port, Lever Handle Actuator, Brass Body, Brass Ball, Brass Trim, PTFE Seal/EPDM/FKM O-Ring, 5.68 in L x 2.07 in W

Uponor ProPEX® Brass Ball Valve is a cost-effective alternative for radiant heating/cooling and hydronic piping applications.1 Both ends are manufactured with the ProPEX fitting for connections to Uponor PEX pipe. The full-port valves are compatible with propylene glycol mixtures up to 50%. Stem extensions can be installed to accommodate up to 2 in of pipe insulation.

QTY
Add to List
  • Features
  • Forged C37700 brass
  • Standard/Approvals: ANSI/NSF 14, ASTM F877/F1960, cNSFus-rfh, cQAIus, CSA B137.5, NSF359
