Taco®

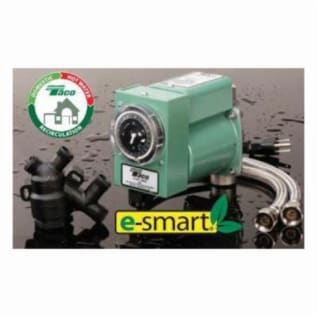

Taco® Hot-Link® HLS-1 Single Phase Hot Water Recirculation System, 1/2 in MNPT Inlet, 115 VAC

1258126 MFG #: HLS-1
$793.00 / ea
Taco® Hot-Link® HLS-1 Single Phase Hot Water Recirculation System, 1/2 in MNPT Inlet, 115 VAC
  • Amperage Rating: 0.52
  • Dimensions: 4 in L x 1-3/4 in W x 4-7/16 in H
  • Frequency Rating: 60
  • Inlet Size: 1/2 in MNPT
  • Motor Speed: 3250
  • Power Rating: 1/40
  • Series: HLS
  • Voltage Rating: 115
  • Phase: 1

Taco® Hot-Link® Hot Water Recirculation System, Single Phase, Series: HLS, 1/2 in MNPT Inlet, 1/40 hp, 115 VAC, 0.52 A, 60 Hz, 3250 rpm Motor, 4 in L x 1-3/4 in W x 4-7/16 in H

The Taco Hot-Link® System (HLS-1) for domestic hot water recirculation reduces the time it takes for hot water comfort to reach showers and faucets. The Hot-Link System can save an average family up to 12,000 gallons of water per year and it's easy to retrofit to an existing plumbing system.

QTY
Add to List
  • Features
  • Exclusive clean in place undersink valve design extends valve life reduces customer calls to replace "plugged" valves
  • Creates a domestic hot water recirculation system without dedicated return loop piping
  • Easy to retrofit to existing plumbing system
  • Conserves water by greatly reducing the time it takes to get hot water
  • Analog pump timer allows you to set the system to work during peak hours or to work continuously
  • Stainless steel casting (volute) stator housing steel
  • Stainless steel cartridge
  • Noryl impeller
  • Ceramic shaft, carbon bearings, EPDM o-ring
  • Nylon body
  • Bi-Metal thermal disk actuator
  • EPDM o-ring seals
  • Integral flow check (IFC®) - acetal body, plunger , EPDM o-rings, 304 SS screen, nylon stem, stainless steel actuator cartridge/braided flex hoses
  • Permanent split capacitor impedance protected motor type
  • Standard/Approvals: cULcs Certified, NSF Certified
  • INCLUDES: Hot-Link Valve, Hot-Link Circulator, (2) Braided Flex Hoses, 3/4 in Bronze Union
