Bradford White®

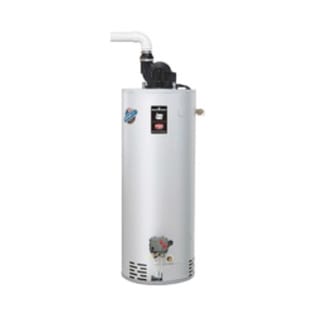

Bradford White® TTW® LG2PV75H763N Gas Water Heater, 75 gal Tank, 76000 Btu/hr Heating, Natural Gas Fuel, Power Vent, Pilot Ignition, Ultra Low Nox: No

1247362 MFG #: LG2PV75H763N
$3,918.00 / ea
  • Dimensions: 26 in Dia x 69-7/16 in H
  • Domestic/Import: Domestic
  • Energy Efficiency: 80
  • Finish: Vitraglas®
  • Fuel Type: Natural Gas
  • Gas Connection: 1/2
  • Heating Capacity: 76000
  • Ignition Type: Pilot
  • Material: Steel
  • Pressure Rating: 150
  • Recovery Rate: 74 gph at 100 deg F Rise
  • Tank Capacity: 75
  • Ultra Low NOx: No
  • Vent Size: 3 in, 4 in
  • Vent Type: Power
  • Water Connection: 3/4 in NPT
  • ASME Yes/No: No

Bradford White® TTW® Gas Water Heater, 76000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 75 gal Tank, Pilot Ignition, Power Vent, 3 or 4 in Vent, 73.7 gph Recovery, 0.8 Energy Efficient, 3/4 in NPT Water Connection, 150 psi, Ultra Low Nox: No, Steel, 26 in Dia x 69-7/16 in H

Light Duty Power Vent (TTW®) (Through-the-Wall) units are perfect for applications where installation flexibility is as important as meeting hot water demands. Power vented for positive exhaust, these units can be vented horizontally and vertically up to 180 ft. These extremely long vent lengths solve difficult ventilation challenges. Light Duty Power Vent models are also available in Ultra Low NOx versions.

QTY
  • Features
  • Bradford White® ICON System™ intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot
  • Enhanced performance
  • Advanced temperature control system
  • Intelligent diagnostics
  • Powerful blower motor
  • Horizontal and vertical venting
  • Advanced ScreenLok® technology flame arrestor design
  • Flammable vapor sensor
  • Maintenance free
  • Sight window
  • Factory installed Hydrojet® sediment reduction system
  • Vitraglas® lining
  • Insulation system
  • Water connections - 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Factory installed heat traps
  • Protective magnesium anode rod and thermostatic mixing valve
  • Durable tamper proof design low restriction brass drain valve
  • Light duty power vent high input gas water heater
  • 4 in WC
  • Standard/Approvals: AHRI Certified, ANSI Z-21.10.3, ASHRAE 90.1b, ASSE Approved, CEC Listed, CSA LLC-Low Lead Content, CSA International (Formerly AGA/CGA), NSF 372
  • INCLUDES: Temperature and Pressure Relief Valve
  • WARRANTY: 3 Years
