Bradford White®

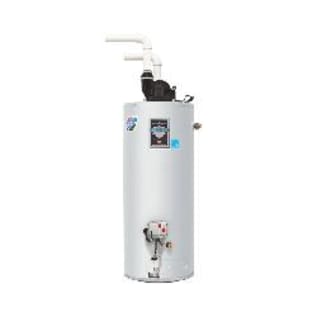

Bradford White® Defender Safety System® RG2PDV50H6N Gas Water Heater, 60000 Btu/hr Heating, 48 gal Tank, Natural Gas Fuel, Power Direct Vent, 65 gph at 90 deg F Recovery, Ultra Low NOx: No, Domestic

1241957 MFG #: RG2PDV50H6N
$4,062.50 / ea
Bradford White® Defender Safety System® RG2PDV50H6N Gas Water Heater, 60000 Btu/hr Heating, 48 gal Tank, Natural Gas Fuel, Power Direct Vent, 65 gph at 90 deg F Recovery, Ultra Low NOx: No, Domestic
  • Dimensions: 22 in Dia x 30-1/2 in D x 69 in H
  • Domestic/Import: Domestic
  • Energy Factor: 0.68
  • Fuel Type: Natural Gas
  • Gas Connection: 1/2
  • Heating Capacity: 60000
  • Ignition Type: Pilot
  • Pressure Rating: 150
  • Recovery Rate: 65
  • Tank Capacity: 48
  • Ultra Low NOx: No
  • Vent Size: 3 x 4
  • Vent Type: Direct/Power
  • Water Connection: 3/4 in NPT

Bradford White® Defender Safety System® Gas Water Heater, 60000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 48 gal Tank, Pilot Ignition, Power Direct Vent, 3 in, 4 in Vent, 65 gph at 90 deg F Recovery, Energy Factor: 0.68, 3/4 in NPT Water Connection, 150 psi, Ultra Low Nox: No, 30-5/8 in D x 69 in H, Domestic

Power Direct Vent models are the solution to installations that lack sufficient air for combustion and require installation flexibility. All models can vent vertically or horizontally and are also approved for direct-vent, closed combustion applications.

QTY
Add to List
  • Features
  • ENERGY STAR® qualified - Some models meet or exceed requirements for ENERGY STAR® per the latest ENERGY STAR® criteria revision, as well as most utility rebate programs
  • Bradford White® ICON System™ - Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during stand-by periods (120 VAC)
  • Enhanced performance - Proprietary algorithms provide enhanced first hour rating and tighter temperature differentials
  • Advanced temperature control system - Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
  • Intelligent diagnostics - An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
  • Pilot on indication - Flashing green LED provides positive indication that pilot is on
  • Separate immersed thermowell - High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
  • Closed combustion venting system - Power direct vent models are ideal for installations which lack sufficient are for combustion, such as new construction homes or additions which are tightly insulated, these models use a twin pipe system where combustion air is drawn from outside the building in one pipe, and combustion products are expelled to the outside in another pipe
  • Cast aluminum air intake boot - A cast molded air intake boot design provides exceptional durability during installation and operation
  • Horizontal and vertical venting - PVC, ABS, or CPVC, the equivalent feet of intake venting cannot be greater than the equivalent feet of exhaust venting
  • Flammable vapor sensor - Electronic sensor prevents burner operation if flammable vapors are detected, the sensor will also prevent operation if there is ongoing flammable vapors burn inside the combustion chamber
  • Factory installed Hydrojet® total performance system - Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build up in tank
  • Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water, this formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
  • Insulation system - 2 in Non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies, and jacket rigidity
  • Water connections - 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Side connections - 3/4 in NPT tapping's allow easy connections for space heating applications
  • Factory installed heat traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective magnesium anode rod - Provides added protection against corrosion for long-term, trouble-free service
  • Low restriction brass drain valve - Durable tamper proof design
  • NOx emissions - less than 40 ng/J
  • Standard/Approvals: AHRI Certified, ANSI Z21.10.1, ASHRAE 90.1b, CEC Listed, CSA LLC - Low Lead Compliant Certified, CSA International (Formerly AGA/CGA), ENERGY STAR® Qualified, NAECA Compliant, NSF 372
  • INCLUDES: Temperature and Pressure Relief Valve
  • WARRANTY: 6 Years Limited Tank and Component Parts
