Sloan®

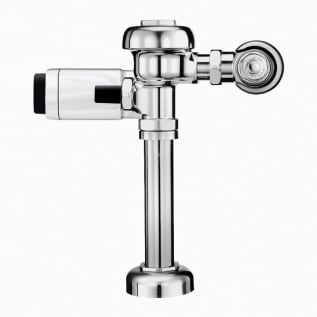

Sloan® Regal® 3980095 REGAL 111 SFSM Single Flush Sensor Exposed Flushometer, Battery, 1.6 gpf, 1 in IPS Inlet, 1-1/2 in Spud, 25 to 80 psi, Polished Chrome, Domestic

1196307 MFG #: 3980095
$919.50 / ea
Sloan® Regal® 3980095 REGAL 111 SFSM Single Flush Sensor Exposed Flushometer, Battery, 1.6 gpf, 1 in IPS Inlet, 1-1/2 in Spud, 25 to 80 psi, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Water Closet
  • Flush Rate: 1.6
  • Inlet Size: 1 in IPS
  • Material: Semi-Red Brass
  • Power Source: Battery
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Sensor Range: 22 to 42
  • Series: 111
  • Spud Coupling: 1-1/2
  • Type: Single-Flush
  • Valve Design: Diaphragm
  • Handle Type: Non-Hold Open Oscillating

Sloan® Regal® Sensor Exposed Flushometer, Single Flush, Series: REGAL 111 SFSM, Water Closet Fixture, Battery, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, Diaphragm, Connection Location: Top Spud, 22 to 42 in Sensor, 25 to 80 psi, Non-Hold-Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Battery Powered, Sensor-Activated, Water Closet Flushometer with a single flush side mount unit for top spud floor mounted or wall hung bowls. For installations where reclaimed or recycled water is used for flushing.

QTY
Add to List
  • Features
  • Chrome plated infrared sensor housing
  • Four (4) size C alkaline batteries included
  • Duracell® with duralock power preserve technology™-guaranteed for up to 10 years in storage
  • No external volume adjustment to ensure water conservation
  • ADA compliant battery powered infrared sensor for automatic "no hands" operation
  • Can be mounted on either the left or right side of valve
  • True mechanical override flush button
  • 72 hr sentinel flush
  • Spud coupling and flange for 1-1/2 in top spud
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • 1 in IPS screwdriver Bak-Chek® angle stop with stop plug
  • Valve body, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
  • Single flush side mount
  • Side sensor position
  • REGAL 111 XL SFSM
  • Standard/Approvals: ADA Compliant, BAA Compliant, cUPC Certified
  • WARRANTY: 3 Years Limited
