John Guest®

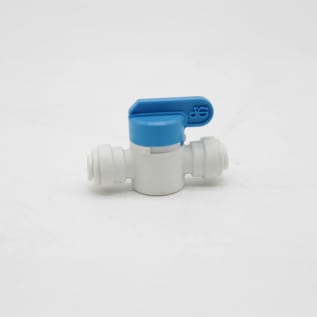

John Guest® Speedfit® PPSV040808W Shut-Off Valve, 1/4 in, Tube, Polypropylene Body

1191205 MFG #: PPSV040808W
$7.81 / ea
John Guest® Speedfit® PPSV040808W Shut-Off Valve, 1/4 in, Tube, Polypropylene Body
  • Body Material: Polypropylene
  • End Style: Tube
  • Nominal Size: 1/4
  • Pressure Rating: 150
  • Softgoods Material: EPDM
  • Temperature Rating: 140

John Guest® Speedfit® Shut-Off Valve, 1/4 in Nominal Size, Tube, 150 psi, 140 deg F, Polypropylene Body

The PPSV Range of shut-off valve is offered for tube sizes 1/4 in OD and 3/8 in OD, produced in polypropylene and fitted with EPDM O-rings. Polypropylene has the advantage of being more chemically resistant than acetal.

QTY
Add to List
  • Features
  • Videos
  • Push-fit technology
  • Quick disconnection without the need for tools
  • High chemical resistance
  • EPDM seals
  • 1/4 turn from open to closed
  • Not suitable for air or inert gases
  • Speedfit to speedfit connector
  • The valves are for use with potable water
  • For use with other potable liquids please contact our technical support department for guidance
  • The valves are not to be used with compressed air, explosive gases, petroleum spirits and other fuels or for heating systems
  • Working pressures and temperatures: 150 psi at 70 deg F (10 bar at 20 deg C), 60 psi at 140 deg F (4 bar at 60 deg C)
  • All these fittings are produced in Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applications
  • Lead free
  • Standard/Approvals: NSF 61
