LEGEND

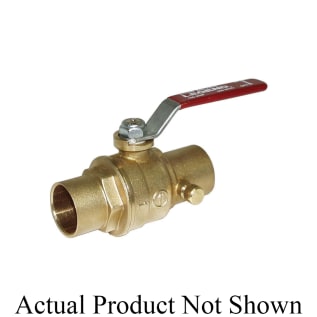

LEGEND 101-513NL S-1100NL Specialty Ball Valve With Drain, 1/2 in Nominal, C End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import

1147952 MFG #: 101-513NL
$32.49 / ea
LEGEND 101-513NL S-1100NL Specialty Ball Valve With Drain, 1/2 in Nominal, C End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import
  • Ball Material: Brass
  • Body Material: Brass
  • Domestic/Import: Import
  • End Style: C
  • Finish: Polished Chrome
  • Flow Rate: 14.2
  • Inlet to Outlet Length: 2.29
  • Media: Water
  • Nominal Size: 1/2
  • Port Type: Full
  • Pressure Rating: 500
  • Series: S-1100NL
  • Softgoods Material: TFM/PTFE
  • Top to Inlet Center: 1.42
  • Trim Material: Brass Stem and PTFE Seat

LEGEND Specialty Ball Valve, Lead Free, Series: S-1100NL, 1/2 in Nominal, C, 500 psi, 14.2 gpm, Full Port, Media: Water, Brass Ball, 2.29 in Inlet to Outlet Length, 1.42 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE, Polished Chrome, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

QTY
Add to List
  • Features
  • Dacromet® coated steel handle nut/handle TFM® PTFE anti-friction washer/thrust washer/seat, fluorocarbon O-Rings, chrome plated forged brass stem/ball, forged brass body/end adapter/waste cap
  • Waste drain allows line to be drained for maintenance or to prevent freeze-up
  • A more durable alternative to conventional stop and waste valves
  • Bottom loaded, blow-out proof stem
  • Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
  • TFM/PTFE thrust washer
  • Standard/Approvals: ANSI/ASME B16.18|ANSI/NSF standard 61-G|U.S. Federal Public Law 111-380
  • WARRANTY: 5/25 Years
