LEGEND

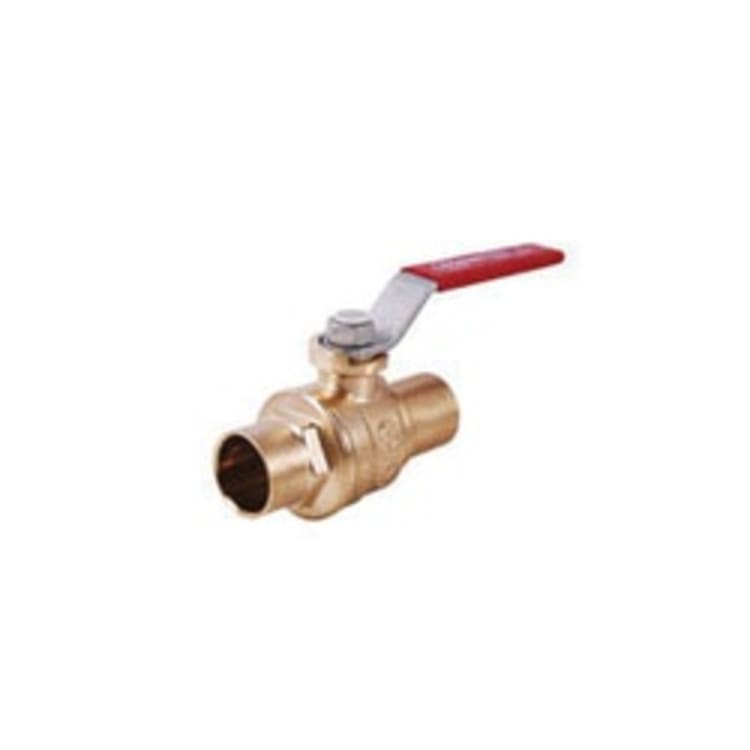

LEGEND 101-045NL S-1001NL Ball Valve, 1 in, C, Forged Brass Body, Full Port, Import

1147936 MFG #: 101-045NL
$41.94 / ea
LEGEND 101-045NL S-1001NL Ball Valve, 1 in, C, Forged Brass Body, Full Port, Import
  • Ball Material: Polished Chrome Forged Brass
  • Body Material: Forged Brass
  • Domestic/Import: Import
  • End Style: C
  • Inlet to Outlet Length: 3.82
  • Nominal Size: 1
  • Orifice Size: 1
  • Port Type: Full
  • Pressure Rating: 600 psi CWP
  • Series: S-1001NL
  • Top to Inlet Center: 2.05
  • Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat

LEGEND Ball Valve, Series: S-1001NL, 1 in Nominal, C, 600 psi CWP, Full Port, 1 in Orifice, Handle Actuator, Chrome Plated Forged Brass Ball, 3.82 in Inlet to Outlet Length, 2.05 in Top to Inlet Center, Forged Brass Body, Chrome Plated Forged Brass Trim, TFM PTFE Seat, Import

QTY
Add to List
  • Features
  • Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
  • Bottom-loaded blowout-proof stem
  • Maintenance-free dual o-ring stem seal
  • Improved dyneon TFM PTFE seats
  • 1/8 to 2 in 600 psi cold working pressure
  • 150 psi saturated steam
  • Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
  • CSA certified 3-88 for use in 2 or 5 lb house piping systems (1/4 in and 1/2 to 2 in)
  • Factory mutual approved for fire protection service (1/2 to 2 in)
  • Standard/Approvals: ANSI B16.18/Z21.15/B16.33, ASME B16.18/B16.33, ASTM B124/124M UNS C37700/A510 UNS G10060, CW510L UNS C28500, CSA Certified, FM Approved, ISO 9002
