WATTS®

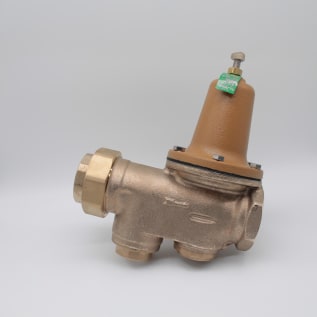

WATTS® 0009465 LF25AUB-Z3 Pressure Reducing Valve, 2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

1146196 MFG #: 0009465
$2,699.00 / ea
  • Body Material: Cast Copper Silicon Alloy
  • Domestic/Import: Domestic
  • End Style: FNPT Union x FNPT
  • Inlet to Outlet Length: 9-1/4
  • Media: Water
  • Nominal Size: 2
  • Pressure Range: 25 to 75
  • Series: LF25AUB-Z3
  • Softgoods Material: Reinforced EPDM Diaphragm
  • Temperature Rating: 33 to 160
  • Top to Inlet Center: 11-1/4
  • Trim Material: Stainless Steel

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 2 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 9-1/4 in Inlet to Outlet Length, 11-1/4 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Reinforced EPDM Diaphragm, Domestic

Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.

QTY
  • Features
  • Videos
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Standard/Approvals: ANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
  • WARRANTY: 1 year Limited
