A.Y. McDonald

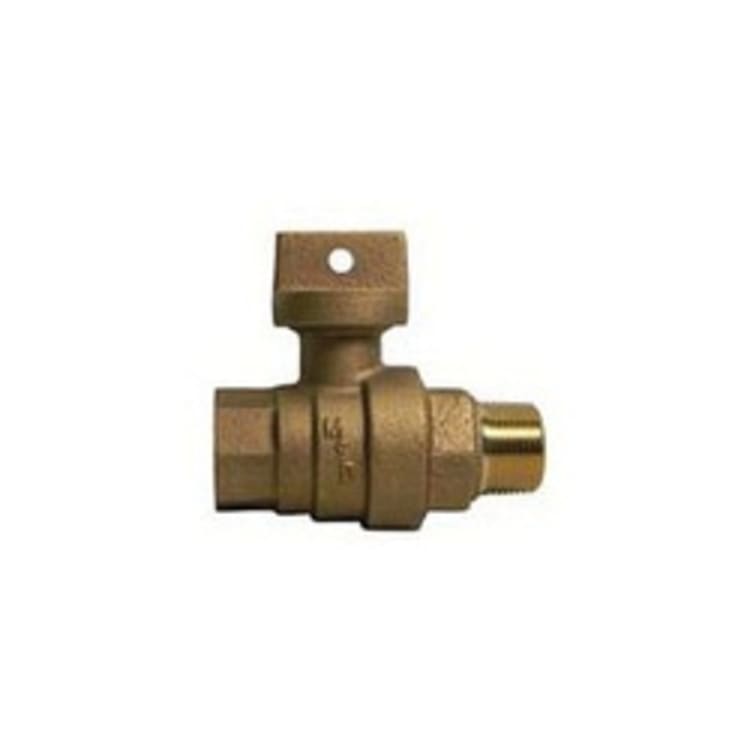

McDonald® 5132-182 76107 Regular Pattern Ball Style Curb Stop, 2 in, FNPT x MNPT, Brass Body

1115264 MFG #: 5132-182
$629.34 / ea
McDonald® 5132-182 76107 Regular Pattern Ball Style Curb Stop, 2 in, FNPT x MNPT, Brass Body
  • Ball Material: PTFE Coated Brass
  • Body Material: Brass
  • End Style: MNPT x FNPT
  • Nominal Size: 2
  • Pressure Rating: 300
  • Series: 76107
  • Softgoods Material: EPDM
  • Top to Inlet Center: 3.71
  • Type: Regular Pattern

McDonald® Ball Style Curb Stop, Regular Pattern, Series: 76107, 2 in Nominal, FNPT x MNPT, 300 psig, PTFE Coated Brass Ball, 3.71 in Top to Inlet Center, Brass Body, EPDM O-Ring, Port Seal

McDonald® Ball Valve Curb Stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM o-ring and thread locker. McDonald® Ball Curb Stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box Threads. A brass 2 in square operating head that is easily pinned to existing curb stops are available separately.

QTY
Add to List
  • Features
  • Manufactured in compliance with ANSI/AWWA C800 (latest revision)
  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
  • Blow out proof EPDM port seals
  • End piece joint sealed with an EPDM O-ring and thread locker
  • Insert stiffeners required on all flexible plastic connections
  • No lead
  • Standard/Approvals: ANSI/AWWA C800, ASTM B584, NSF/ANSI 61/372, UNS C89833
