Liberty Pumps®

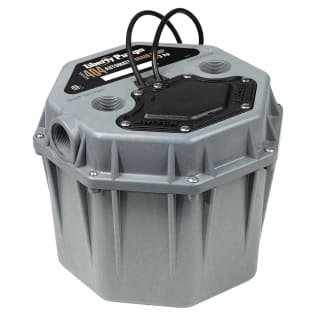

Liberty Pumps® 404 Compact/Low Profile Drain Pump, 37 gpm, 1-1/2 in Inlet x 1-1/2 in Outlet, 20 ft Shutoff Head, 1/3 hp

11141 MFG #: 404
$458.00 / ea
Liberty Pumps® 404 Compact/Low Profile Drain Pump, 37 gpm, 1-1/2 in Inlet x 1-1/2 in Outlet, 20 ft Shutoff Head, 1/3 hp
  • Dimensions: 13-3/4 in W x 11-1/8 in H
  • Flow Rate: 50
  • Inlet Size: 1-1/2 in FNPT
  • Material: Polypropylene
  • Outlet Size: 1-1/2 in FNPT
  • Series: 404
  • Temperature Rating: 104 deg F Continuous/140 deg F Intermittent
  • Type: Compact Low Profile Fully Automatic
  • Amperage Rating: 5.2
  • Horsepower: 1/3
  • Motor Speed: 3450
  • Voltage Rating: 115
  • Bearing Type: Sealed
  • Cord Type: SJTW 10 ft
  • Frequency Rating: 60
  • Impeller Type: Vortex High Temperature Engineered Polymer
  • Maximum Head: 21
  • Phase: 1

Liberty Pumps® Drain Pump, Compact/Low Profile, 37 gpm, 1-1/2 in Inlet, 1-1/2 in Outlet, 20 ft Shutoff Head, 1/3 hp, 115 VAC, 4.3 gal Reservoir, 140 deg F, 11-1/8 in H x 13-3/4 in W

The short profile of Liberty's 404 is specially designed for compact areas and gives you the freedom to install fixtures where gravity drain lines are not available. Our QuickTree® Technology provides a separate access cover for easy switch inspection. For gray wastewater applications, the 404 is perfect for laundry tray sinks, bar sinks, washing machines and other basement remodeling projects. The system arrives fully assembled and ready to install.

QTY
Add to List
  • Features
  • Videos
  • Compact design for tight areas
  • Factory pre-assembled
  • Fully automatic operation
  • QuickTree® technology allows quick inspection and removal of float switch without disconnecting the plumbing
  • Integrally molded rubber gaskets for a superior gas-tight seal
  • 3/8 in solids handling
  • Corrosion-resistant polyolefin basin with molded-in connections
  • Maintenance-free, permanently lubricated sealed bearings
  • 1-1/2 in FPT vent
  • 3450 rpm motor
  • 60 Hz frequency rating
  • 5 A rating
  • Standard/Approvals: SSPMA Certified, uCSAus Certified, California Provision: WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • INCLUDES: Piggyback Style Plug
  • WARRANTY: 3 Years Limited
