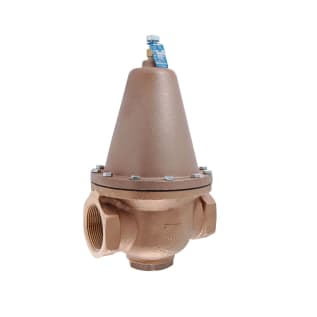

WATTS® 0298602 LFN223B Super Capacity Pressure Reducing Valve, 2-1/2 in, FNPT, 300 psi, Copper Silicon Alloy Body

1094283 MFG #: 0298602
$10,097.00 / ea
WATTS® 0298602 LFN223B Super Capacity Pressure Reducing Valve, 2-1/2 in, FNPT, 300 psi, Copper Silicon Alloy Body
  • Body Material: Cast Copper Silicon Alloy
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Inlet to Outlet Length: 7-7/8
  • Media: Water
  • Nominal Size: 2-1/2
  • Pressure Range: 25 to 75
  • Series: LFN223
  • Softgoods Material: Reinforced Buna-N® Diaphragm
  • Temperature Rating: 33 to 160
  • Top to Inlet Center: 10-3/4
  • Type: Super Capacity

WATTS® No Lead Pressure Reducing Valve, Super Capacity, Series: LFN223B, 2-1/2 in Nominal, FNPT, 300 psi, 33 to 160 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, 10-3/4 in Top to Inlet Center, Copper Silicon Alloy Body, Reinforced Buna-N® Diaphragm

Series LFN223B, LFN223BS Lead Free High Capacity Water Pressure Reducing Valves are used in commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a triple-coated corrosion preventative Lead Free cast copper silicon alloy body construction, an enlarged diaphragm, spring cage and seat orifice for super capacity performance, sealed spring cage for waterworks pit installations and thermal expansion bypass. Available with NPT threaded female inlet x NPT threaded female outlet with (LFN223BS) or without (LFN223B) strainer.

QTY
Add to List
  • Features
  • Videos
  • Enlarged diaphragm, spring cage and seat orifice for super capacity performance
  • Lead free cast copper silicon alloy body construction
  • Serviceable in line
  • Standard bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • 25 to 75 psi (172 to 517 kPa) adjustable reduced pressure range
  • 50 psi (345 kPa) standard pressure setting
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Note: a water saving test program concluded that reducing the supply pressure from 80-50 psi (551-345 kPa) resulted in a water savings of 30%
  • Note: the bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi (10.3 bar)
  • Standard/Approvals: ASSE 1003, IAPMO Listed, NSF 61-G Certified
