Chicago Faucet®

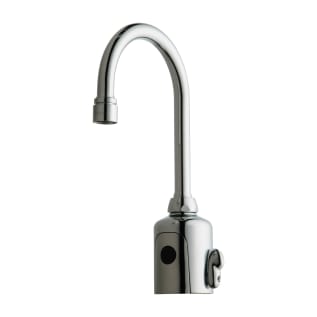

Chicago Faucet® HyTronic® 116.223.AB.1 Sink Faucet With Dual Beam Infrared Sensor, 0.5 gpm, Chrome Plated, Lithium Battery, Domestic, Commercial

1055942 MFG #: 116.223.AB.1
$1,099.00 / ea
Chicago Faucet® HyTronic® 116.223.AB.1 Sink Faucet With Dual Beam Infrared Sensor, 0.5 gpm, Chrome Plated, Lithium Battery, Domestic, Commercial
  • Commercial/Residential: Commercial
  • Connection Size: 3/8
  • Connection Type: Compression
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Flow Rate: 0.5
  • Material: Brass
  • Maximum Deck Thickness: 1-1/2
  • Mounting Type: Deck
  • Number of Faucet Holes: 1
  • Spout Height: 11-3/8
  • Spout Reach: 5-1/4
  • Spout Type: Gooseneck
  • Spray Pattern: Non-Aerating
  • Valve/Cartridge Type: Solenoid

Chicago Faucet® HyTronic® Sink Faucet, 0.5 gpm, Gooseneck Spout, 5-1/4 in Spout Reach, 11-3/8 in Spout Height, Lithium Battery, 6 VDC, 3/8 in, Compression Thread, 1 Faucet Hole, Spray Pattern: Non-Aerating, 1-1/2 in Maximum Deck Thickness, Deck Mount, Solenoid Valve Valve/Cartridge, Brass, Chrome Plated, Domestic, Commercial

QTY
Add to List
  • Features
  • GN2AH8AB: 5-1/4 in Rigid/swing gooseneck spout
  • E2805-5AB: 0.5 gpm (1.9 L/min) vandal proof pressure compensating econo-flo non-aerating spray
  • Dual supply for hot and cold water service
  • User adjustable temperature control mixer
  • Multiple field adjustable modes and ranges
  • Compatible with Chicago faucets Commander™ handheld programming unit
  • ECAST® construction with equal to or less than 0.25% lead content by weighted average
  • 20 to 125 psi rated operating pressure
  • 40 to 140 deg F rated operating temperature
  • ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
  • Standard/Approvals: ADA ANSI/ICC A117.1|ASME A112.18.1/CSA B125.1|BAA Compliant|California Green Building|California Health and Safety Code 116875 (AB 1953-2006)|Louisiana Low Lead Law HB.471|NSF/ANSI 372 Low Lead Content|NSF/ANSI 61|Section 9 by CSA|Vermont Bill S.152
