Tyler Pipe

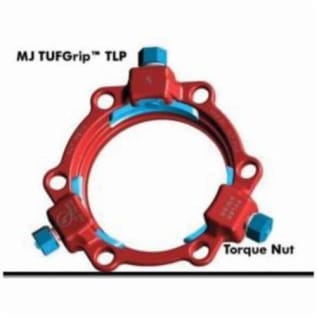

Tyler Pipe TUFGRIP™ 114192 1000 Wedge Joint Restraint, 12 in Pipe, 350 psi, 8 Bolts, 6 Wedges, Ductile Iron

1041430 MFG #: 114192
$319.38 / ea
Tyler Pipe TUFGRIP™ 114192 1000 Wedge Joint Restraint, 12 in Pipe, 350 psi, 8 Bolts, 6 Wedges, Ductile Iron
  • Bolt Size: 3/4 x 4
  • Connection Type: Mechanical Joint
  • Finish: Black
  • Material: Ductile Iron
  • Number of Bolts: 8
  • Number of Wedges: 6
  • Outer Diameter: 13.2
  • Pipe Size: 12
  • Pressure Rating: 350
  • Series: 1000
  • Suitable For Use With: Ductile Iron Pipe
  • Type: Wedge

Tyler Pipe TUFGRIP™ Joint Restraint, Wedge, Series: 1000, 12 in Pipe, 13.2 in Outer Dia, 350 psi, 8 Bolts, 3/4 x 4 in Bolt, 6 Wedges, Mechanical Joint Connection, Ductile Iron, Black, For Use With: Ductile Iron Pipe

QTY
Add to List
  • Features
  • Torque limiting nut on gripping wedge assembly twists off within a designed torque range eliminating the need for specialized tools
  • Gripping wedge assembly pivots providing stronger engagement of pipe wall at lower torque requirement
  • Proven restraint technology utilizing fewer gripping wedges in frequently applied diameters, reducing trench time and project cost
  • Restraint's heavy duty construction and design eliminates the need for costly thrust blocks and tie rods
  • Suitable for potable and sastewater applications
  • Standard/Approvals: ANSI/AWWA C111, C153, C110, ASTM A536, FM Approved, UL Listed
