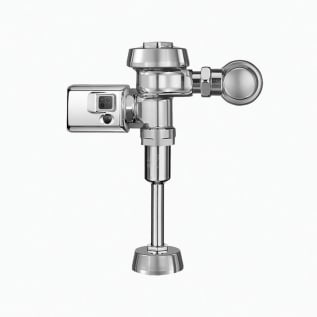

Sloan® Royal® 3912654 ROYAL 186 SMO Single Flush Sensor Exposed Flushometer, Battery, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 100 psi, Polished Chrome, Domestic

1032042 MFG #: 3912654
$1,032.08 / ea
Sloan® Royal® 3912654 ROYAL 186 SMO Single Flush Sensor Exposed Flushometer, Battery, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 100 psi, Polished Chrome, Domestic
  • Collection: Optima®
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Urinal
  • Flush Rate: 0.125
  • Inlet Size: 3/4 in IPS
  • Material: Semi-Red Brass
  • Power Source: Battery
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Sensor Range: 8 to 54
  • Series: 186-SMO-0.125-DBP-OR
  • Spud Coupling: 3/4
  • Type: Single-Flush
  • Valve Design: Diaphragm

Sloan® Royal® Sensor Exposed Flushometer, Single Flush, Series: ROYAL 186 SMO, Urinal Fixture, Battery, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, 8 to 54 in Sensor, 15 to 100 psi, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Battery Powered, Side Mount Sensor Operated Urinal Flushometer for 3/4 in top spud urinals.

QTY
Add to List
  • Features
  • Flush accuracy controlled by CID™ technology
  • Spud coupling and flange for 3/4 in top spud
  • Chrome plated infrared sensor housing
  • "User in View" flashing LED
  • No external volume adjustment to ensure water conservation
  • Infrared sensor range adjustment screw and reset button
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • 3/4 in IPS Screwdriver Bak-Chek® straight stop with free spinning, vandal resistant stop cap
  • ADA compliant OPTIMA® battery powered infrared sensor for automatic "No Hands" operation
  • Angled sensor window
  • Manual override flush button
  • Low Battery flashing LED with optional audio tone
  • Optional 24-hour sentinel flush
  • Valve body, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
  • Dual by-pass side mount operator
  • Side sensor position
  • ROYAL 186-0.125 DBP SMO
  • Standard/Approvals: ADA Compliant, BAA Compliant, cUPC Certified, cUPC Green Certified, Satisfies LEED Credits, WaterSense Listed, Valve Shall be in Compliance with the Applicable Sections of ASSE 1037, ANSI/ASME A112.19.2
  • INCLUDES: (4) Size C Alkaline Batteries
  • WARRANTY: 3 Years Limited
