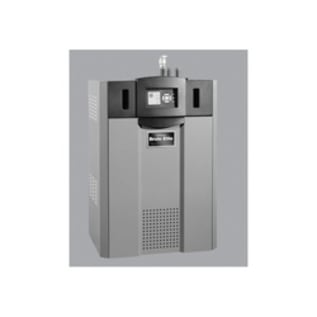

Bradford White® BNTV-850-NJX0 Brute™ Elite Electric Modulating Volume Tankless Water Heater, 120 VAC, 1 ph, 2 in MNPT Water, 2 A

1290736 MFG #: BNTV-850-NJX0
$0.00 / ea
Bradford White® BNTV-850-NJX0 Brute™ Elite Electric Modulating Volume Tankless Water Heater, 120 VAC, 1 ph, 2 in MNPT Water, 2 A
  • Amperage Rating: 2
  • ASME Yes/No: Yes
  • Dimensions: 25 in W x 55-1/4 in D x 38-1/4 in H
  • Energy Factor: 0.96
  • Flow Rate: 68
  • Phase: 1
  • Pressure Rating: 160
  • Recovery Rate: 2473 gph at 40 deg F Rise
  • Series: Brute™ Elite
  • Type: Electric Modulating
  • Voltage Rating: 120
  • Water Connection: 2 in MNPT

Bradford White® Volume Tankless Water Heater, Electric Modulating, Series: Brute™ Elite, 120 VAC, 2 A, 1 ph, 68 gpm, 2 in MNPT Water Connection, Energy Factor: 0.96, 2473 gph at 40 deg F Rise Recovery, 160 psi, ASME Yes/No: Yes, 25 in W x 55-1/4 in D x 38-1/4 in H

QTY
Add to List
  • Features
  • Large LCD display with touchpad user interface
  • Menus for login, display setup, quick start, advanced setup, test and diagnostics
  • Password-protected parameters for installer use
  • Quick start feature for simple, single heater installations
  • Dry alarm contacts for ignition failure
  • Modulation down to 20% of full fire (5:1 turndown)
  • Sealed combustion chamber
  • Vent temperature cutoff feature
  • Built-in condensate trap
  • Direct spark ignition system
  • Sensor for domestic water tank
  • Stainless steel heat exchanger with welded construction (no gaskets)
  • Integrated PID temperature and ignition controls
  • Electronic PID modulating control
  • Manual reset high limit
  • On/off toggle switch
  • Low NOx system exceeds the most stringent regulations for air quality - less than 10 ppm NOx
  • Natural gas fuel
  • CSD-1 mounting
  • No pump
  • Standard/Approvals: AHRI Certified|ASME H Certified|CSA Certified
  • WARRANTY: 8 Years Limited
