Bradford White®

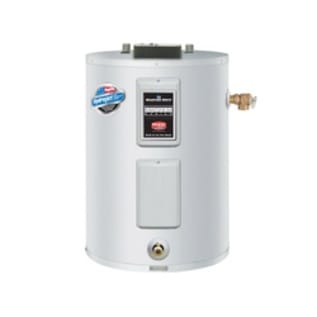

Bradford White® ElectriFLEX LD™ LE120L3-3NCWW Light Duty Lowboy Electric Water Heater, 19 gal Tank, 3500 W at 208 VAC/4500 W at 240 VAC, 208/240 VAC, 3 ph

1247387 MFG #: LE120L3-3NCWW
$1,395.00 / ea
Bradford White® ElectriFLEX LD™ LE120L3-3NCWW Light Duty Lowboy Electric Water Heater, 19 gal Tank, 3500 W at 208 VAC/4500 W at 240 VAC, 208/240 VAC, 3 ph
  • ASME Yes/No: No
  • Dimensions: 18 in Dia x 26 in H
  • Domestic/Import: Domestic
  • Heating Element: Screw-In Copper
  • Material: Steel
  • Phase: 3
  • Power Rating: 4.5
  • Pressure Rating: 150
  • Recovery Rate: 18
  • Series: LE120L3-3
  • Tank Capacity: 19
  • Type: Light Duty Lowboy
  • Voltage Rating: 208
  • Water Connection: 3/4 in NPT

Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Lowboy, Series: LE120L3-3, 19 gal Tank, 208/240 VAC, 3500 W at 208 VAC/4500 W at 240 VAC, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 18 in Dia x 26 in H, Domestic

Power in a short package is what you get with these convenient commercial electrics. They're perfect for under counter installations and are field convertible for various wiring configurations.

QTY
Add to List
  • Features
  • Fully automatic thermostat control - Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
  • Direct heat transfer with immersed element - Transfers heat directly and efficiently to the water
  • Factory installed Hydrojet® sediment reduction system - Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
  • Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • Insulation system - 1 in non-CFC foam insulation - Covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connection - 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
  • Factory installed heat traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective magnesium rod - Provides added protection against corrosion for long trouble free service
  • Steel tank - Heavy gauge steel automatically formed, rolled and welded
  • Field convertible - Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
  • Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter
  • Copper screw type immersion element
  • Standard/Approvals: AHRI Certified|ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|CSAE Certified|NSF 372|UL 174
