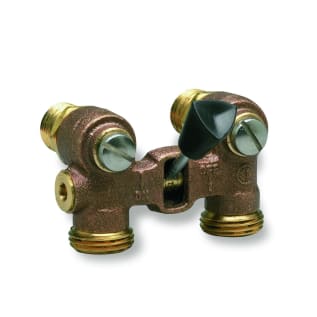

WATTS® Duo-Cloz™ 0006643 2-M2, 2T-M2 Manual Shutoff Valve, 1/2 in, 150 psi, Brass Body
- Actuator Type: Lever Handle
- Body Material: Brass
- Domestic/Import: Domestic
- Media: Water
- Nominal Size: 1/2
- Pressure Rating: 150
- Series: 2-M2
- Temperature Rating: 180
- Type: Manual
WATTS® Duo-Cloz™ Shutoff Valve, Manual, Series: 2-M2, 1/2 in Nominal, 150 psi, 180 deg F, Media: Water, Lever Handle Actuator, Brass Body
Series 2 Duo-Cloz Manual Washing Machine Shutoff Valves are used in washing machine applications to manually control water flow and pressure from the hot and cold water supply piping to the flexible hoses feeding a washing machine. It prevents the washing machine hoses from bursting preventing water damage in the home. It consists of a brass (Models 2-M2 and 2T-M2) or satin chrome (Models 2-M2-SC and 2T-M2-SC) body construction, and a single DuoCloz lever to control shutoff of both hot and cold water supplies. Models 2-M2 and 2-M2-SC have 1/2 in solder or 1/2 in compression connections. Models 2T-M2 and 2T-M2-SC have 1/2 in NPT male threaded or 1/2 in solder connections. Series 2 has a throttling feature that minimizes the shock effect of quick-closing washing machine solenoid valves. Maximum Pressure: 150psi.
- Features
- Single lever turns off both cold and hot water supplies with the flick-of-the-finger
- Ball-type construction allows water to flow when 2-M2 lever is placed in the down position and ceases water flow when lever is placed in the up position
- Throttling feature minimizes the shock effect of quick closing washing machine solenoid valves
- Lever can be set in any position to control water flow
- When used properly, prevents flooding due to burst washing machine hoses by relieving the hoses of constant supply pressure
- Copper ell dual adapters for 1/2 in solder or 1/2 in compression
- 150 psi (10.3 bar) operating pressure
- 180 deg F (82 deg C) operating temperature
- Standard/Approvals: PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
