Woodford®

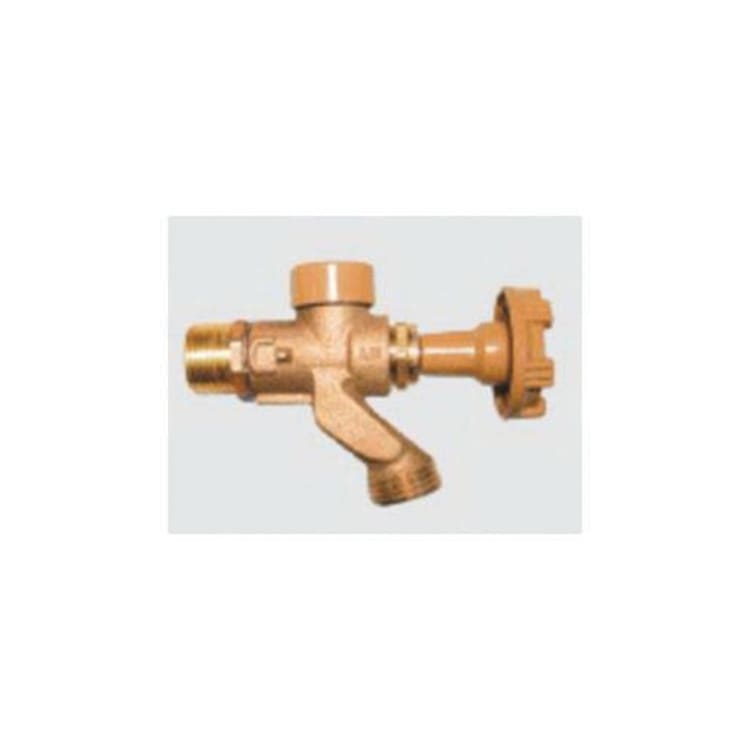

Woodford® 101P-BP Model 101 Anti-Siphon Wall Faucet, 3/4 x 1/2 in, Combination MNPT x FNPT, 125 psi

907094 MFG #: 101P-BP
$51.75 / ea
Woodford® 101P-BP Model 101 Anti-Siphon Wall Faucet, 3/4 x 1/2 in, Combination MNPT x FNPT, 125 psi
  • Dimensions: 3-1/2 in H
  • Domestic/Import: Domestic
  • End Style: Combination MNPT x FNPT
  • Length: 4-7/8
  • Nominal Size: 3/4 or 1/2
  • Pressure Rating: 125
  • Series: Model 101
  • Temperature Rating: 120
  • Type: Anti-Siphon
  • Handle Type: Wheel

Woodford® Wall Faucet, Anti-Siphon, Series: Model 101, 3/4 x 1/2 in Nominal Size, Combination MNPT x FNPT, 125 psi, Wheel Handle, 4-7/8 in Length, 120 deg F, 3-1/2 in H

The Model 101 is an anti-siphon protected wall faucet designed with the classic Woodford® look for irrigation purposes in mild climate areas. The Model 101 utilizes Woodford® atmospheric vent and patented check to provide anti-siphon protection. This feature eliminates the need for an add-on vacuum breaker that restricts flow.

QTY
Add to List
  • Features
  • Videos
  • 3/4 in male hose thread nozzle
  • EPDM packing with adjustable packing nut
  • Standard "O" size seat washer
  • No lead solder joints
  • Red brass head casting
  • Solid brass valve stem
  • Powder-coated die cast aluminum wheel handle
  • Adjustable, polycarbonate wall flange not assembled
  • Standard/Approvals: ASSE 1019-Type C, IAPMO Listed, UPC Listed, US Patents
