Woodford®

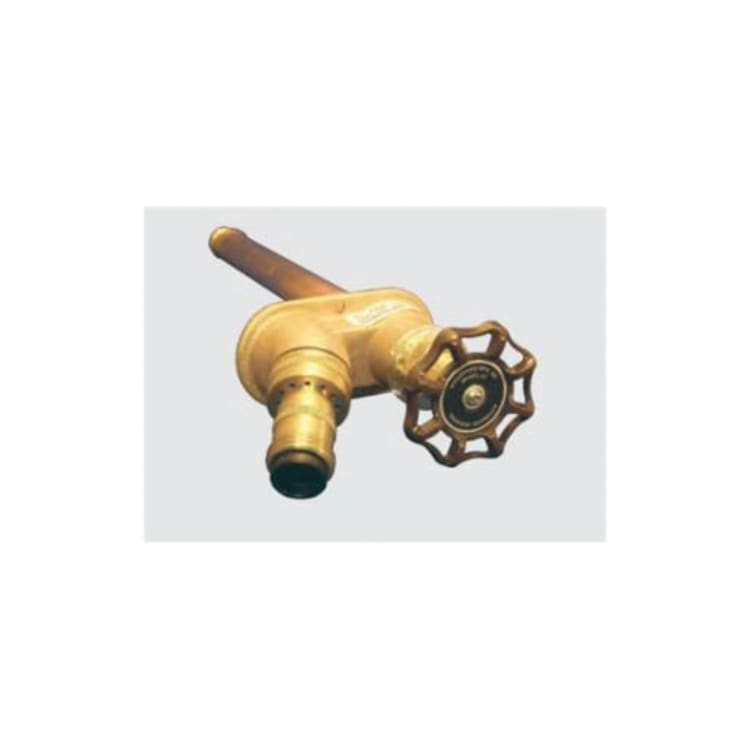

Woodford® 27W-12 Model 27 Freezeless Automatic Draining Wall Faucet With Double Check Backflow Preventer, 1/2 in, Wirsbo® Tube, 12 in THK Wall, 125 psi, Domestic

1409079 MFG #: 27W-12
$118.00 / ea
Woodford® 27W-12 Model 27 Freezeless Automatic Draining Wall Faucet With Double Check Backflow Preventer, 1/2 in, Wirsbo® Tube, 12 in THK Wall, 125 psi, Domestic
  • Dimensions: 15/16 in Dia Inlet
  • Domestic/Import: Domestic
  • End Style: Wirsbo® Tube
  • Finish: Brass
  • Nominal Size: 1/2
  • Pressure Rating: 125
  • Series: Model 27
  • Temperature Rating: 120
  • Type: Freezeless
  • Wall Thickness: 12
  • Handle Type: Wheel

Woodford® Automatic Draining Wall Faucet, Freezeless, Series: Model 27, 1/2 in Nominal, Wirsbo® Tube, 12 in Wall Thickness, 125 psi, Wheel, 120 deg F, Brass, 15/16 in Dia Inlet, Domestic

The Woodford® Model 27 drains as handle is shut off even if hose is attached. This faucet is designed for residential outside water service applications and intended for irrigation purposes.

QTY
Add to List
  • Features
  • Videos
  • Molded nitrile valve suitable for hot water
  • 3/4 in male hose thread nozzle
  • No lead solder on all solder joints
  • Hemispherical cushion type plunger
  • DELRIN® stem screw
  • Brass head nut
  • Metal handle
  • Field testable
  • Two independent check valves
  • Drains automatically when hose is removed
  • No spray back
  • Patented model 50HA high flow double check backflow preventer
  • Standard/Approvals: ASSE 1052|IAPMO Listed
