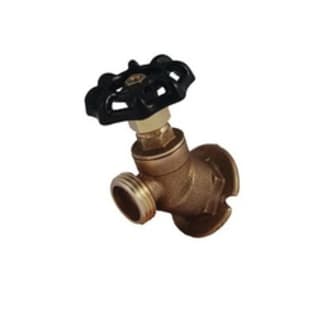

LEGEND 107-174NL T-541NL Low Pressure Sillcock, 1/2 x 3/4 in Nominal, FNPT x Male Garden Hose Threaded End Style, Brass Body, Handwheel Actuator, Import

1148025 MFG #: 107-174NL
$22.04 / ea
LEGEND 107-174NL T-541NL Low Pressure Sillcock, 1/2 x 3/4 in Nominal, FNPT x Male Garden Hose Threaded End Style, Brass Body, Handwheel Actuator, Import
  • Actuator Type: Handwheel
  • Body Material: Brass
  • Dimensions: 3.89 in L Open x 3.55 in L Closed x 2.31 in W
  • Domestic/Import: Import
  • End Style: FNPT x Male Garden Hose Threaded
  • Media: Oil/Water
  • Nominal Size: 1/2 x 3/4
  • Port Type: Full
  • Pressure Rating: 125
  • Series: T-541NL
  • Trim Material: Cast Brass
  • Type: Low Pressure

LEGEND Sillcock, Low Pressure, Series: T-541NL, 1/2 x 3/4 in Nominal, FNPT x Male Garden Hose Threaded End Style, 125 psi Pressure, Full Port, Media: Oil/Water, Brass Body, Cast Brass Trim, Handwheel Actuator, 3.89 in L Open x 3.55 in L Closed x 2.31 in W Dimensions, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

QTY
Add to List
  • Features
  • Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
  • Full-pattern body, stem and handwheel construction is more durable than reduced-material examples
  • Electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
  • Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
  • Cast iron handle cadmium plated steel nut handle fastened, brass screw, packing nut, NBR (Buna-N) rubber stem packing and seat washer, stainless steel seat retaining screw
  • Cast brass body
  • Standard/Approvals: ANSI/NSF 61-G|ANSI/ASME B1.20.1 (FNPT)|CSA Certified|ISO 9002 Certified|U.S. Federal Public Law 111-380 Compliance
  • WARRANTY: 5/25 Years
