Apollo™

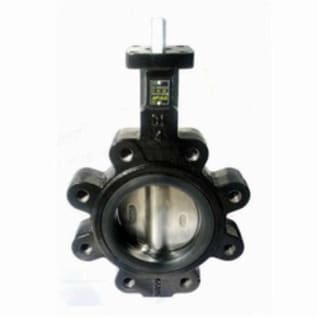

Apollo™ LD-141-02-B-E-1-1 LD141 Resilient Seated Lug Style Butterfly Valve, 2 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods

1155016 MFG #: LD-141-02-B-E-1-1
$273.49 / ea
Apollo™ LD-141-02-B-E-1-1 LD141 Resilient Seated Lug Style Butterfly Valve, 2 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods
  • Actuator Type: 10-Position Handle
  • Body Material: Ductile Iron
  • End Style: Flanged
  • Nominal Size: 2
  • Pressure Class: 125/150
  • Series: LD141
  • Softgoods Material: EPDM
  • Temperature Rating: -20 to 250 deg F Intermittent/225 deg F Continuous
  • Top to Inlet Center: 6-3/8
  • Type: Resilient Seated Lug Style

Apollo™, LD-141-02-B-E-1-1, Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 2 in Nominal, Flanged End Style, 125/150 lb Pressure Class, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 6-3/8 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM Softgoods

Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.

QTY
Add to List
  • Features
  • Videos
  • Compatible with ANSI 125 lb and 150 lb flanges
  • ISO 5211 top plate allows choice of Apollo™ pneumatic actuators and manual operators
  • LD141 series Suitable for end of line service (bidirectional dead end service) to rated pressure (2 to 12 in)
  • 3 to 24 in meet performance requirements of AWWA C-504
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • ASTM A276 type 416 stainless steel standard shaft
  • Buna-N stem seal and glass reinforced epoxy resin bushing
  • Black EPDM seat
  • Flange holes comply with ANSI class 125/150 dimensions
  • The face-to-face dimensions were designed to comply with MSS SP-67 and API 609
  • Through-shaft design with spline connection with stem to disc
  • Disc-to-seat interface provides bubble-tight shut-off with reduced torque and extended service life
  • Equipped with a stretch-resistant, non-collapsible, blow-out proof, phenolic-backed cartridge seat
  • Meets the intent and has passed AWWA C504-87 section 5 proof of design tests
  • Factory tested to 110% of full rated pressure in both directions before shipping
  • Standard/Approvals: ANSI Specified|API 609|ASTM A536 Body|AWWA C-504|CRN OC/2102CL|MSS SP67-2002a|NSF/ANSI 372 Lead-Free
