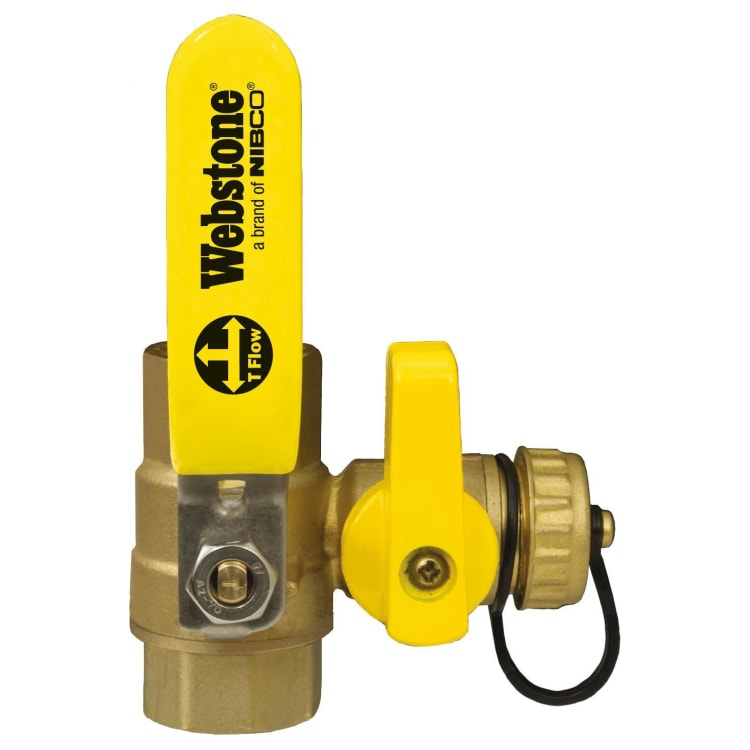

Webstone Ball Drain® Clean Brass® H-40613W Pro-Pal® 4061 Ball Valve, 3/4 in Nominal, IPS End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
- Actuator Type: Lever Handle
- Ball Material: HCP Brass
- Body Material: Forged Brass
- Domestic/Import: Import
- End Style: IPS
- Inlet to Outlet Length: 2-5/8
- Media: Gas/Oil/Water
- Nominal Size: 3/4
- Port Type: Full
- Pressure Rating: 600
- Series: Pro-Pal® 4061
- Softgoods Material: PTFE
- Temperature Rating: 100
- Top to Inlet Center: 2-1/16
- Trim Material: Brass Stem and PTFE Seat
Webstone Ball Drain® Clean Brass® Ball Valve, Series: Pro-Pal® 4061, 3/4 in Nominal, IPS, 600 psi, 100 deg F, Full Port, Media: Gas/Oil/Water, Lever Handle Actuator, HCP Brass Ball, 2-5/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Import
Pro-Pal valves are your best choice for efficient installation and system operation and for helping to control costs. Pro-Pal valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
- Features
- Eliminates assembly needed to isolate and drain any portion of a piped system
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
- Saves 27 minutes
- Replaces 4 components
- Brass stem and PTFE seat
- Standard/Approvals: ANSI B1.20.1|NSF/ANSI 61/372|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- WARRANTY: Limited Lifetime
