Apollo™

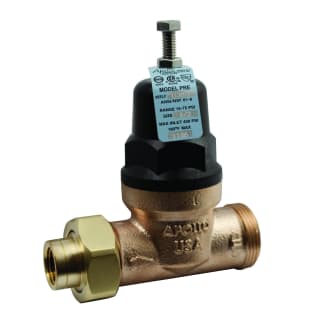

Apollo™ 36ELF12401T 36ELF Double Union Lead Free Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic

1342412 MFG #: 36ELF12401T
$391.38 / ea
Apollo™ 36ELF12401T 36ELF Double Union Lead Free Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic
  • Body Material: Bronze
  • Dimensions: 6 in H x 5.49 in W
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Nominal Size: 3/4
  • Pressure Range: 15 to 75
  • Series: 36ELF
  • Softgoods Material: EPDM O-Ring
  • Temperature Rating: 33 to 180
  • Trim Material: EPDM/Stainless Steel
  • Type: Double Union Lead Free

Apollo™, 36ELF12401T, Pressure Reducing Valve, Double Union Lead Free, Series: 36ELF, 3/4 in Nominal, FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Bronze Body, EPDM/Stainless Steel Trim, 6 in H x 5.49 in W Dimensions, Domestic

The Apollo lead free pressure reducing valve model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

QTY
Add to List
  • Features
  • Balanced piston design
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installations
  • Built-in thermal expansion bypass
  • Factory tested and preset at 60 psi
  • Modular seat disc and strainer cartridge
  • Large area integral stainless steel strainer
  • High flow high efficiency design
  • Standard/Approvals: NSF/ANSI 372|ASSE 1003|CSA B356|IAPMO Certified|UPC Listed|cCSAus Certified
  • WARRANTY: 5 years
