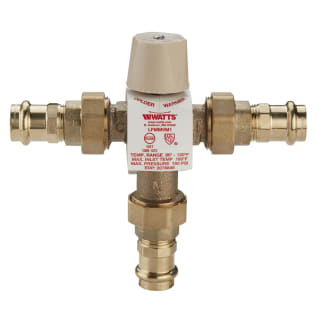

WATTS® 6550791 LFMMV Thermostatic Mixing Valve, 1/2 in Nominal, Threaded Union End Style, 150 psi Pressure, 20 gpm Flow, Copper Silicon Alloy Body, Domestic
- Body Material: Copper Silicon Alloy
- Dimensions: 5-7/18 in L Hot Water
- Domestic/Import: Domestic
- End Style: Threaded Union
- Flow Capacity: 20
- Inlet to Outlet Length: 4-7/8
- Nominal Size: 1/2
- Pressure Rating: 150
- Series: LFMMVM1-UT
- Softgoods Material: Buna-N®/EPDM O-Ring
- Temperature Rating: 200
- Trim Material: Stainless Steel
WATTS® Thermostatic Mixing Valve, Series: LFMMV, 1/2 in Nominal, Threaded Union, 150 psi, 200 deg F, 20 gpm Flow, 4-7/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Trim, Buna-N®/EPDM O-Ring, 5-7/18 in L Hot Water, Domestic
This 1/2 in lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free cast copper silicon alloy body, union thread connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 deg F. The maximum pressure rating is 150 psi.
- Features
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Adjustment cap with locking feature
- Integral filter washers and check valves
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Viega ProPress connections are factory-installed fitting on each end of the approved/certified assembly
- Standard/Approvals: ASSE 1017|ASSE 1069|ASSE 1070|IAPMO Listed and cUPC listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: Limited
