Apollo™

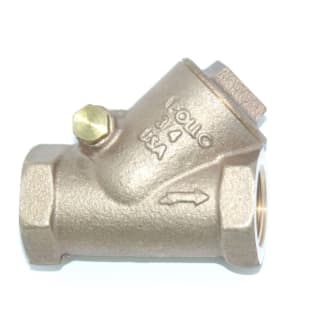

Apollo™ 61Y21901 164T Y-Pattern Swing Check Valve, 2-1/2 in, NPT, 150 lb, 198 gpm, Bronze Body, Low Lead Compliance: Yes, Domestic

1313677 MFG #: 61Y21901
$956.45 / ea
Apollo™ 61Y21901 164T Y-Pattern Swing Check Valve, 2-1/2 in, NPT, 150 lb, 198 gpm, Bronze Body, Low Lead Compliance: Yes, Domestic
  • Body Material: Bronze
  • Dimensions: 5.11 in H
  • Domestic/Import: Domestic
  • End Style: NPT
  • Flow Rate: 198
  • Inlet to Outlet Length: 8
  • Low Lead Compliance: Yes
  • Nominal Size: 2-1/2
  • Pressure Class: 150
  • Pressure Rating: 300 psi CWP
  • Series: 164T
  • Temperature Rating: -20 to 406
  • Trim Material: Bronze
  • Type: Y-Pattern

Apollo™ Swing Check Valve, Y-Pattern, Series: 164T, 2-1/2 in Nominal Size, NPT, 300 psi CWP, 150 lb, -20 to 406 deg F, Low Lead Compliance: Yes, 198 gpm, 8 in Inlet to Outlet Length, Bronze Body, Bronze Trim, 5.11 in H, Domestic

The Apollo™ Model 164T (61Y Series) Swing Check provides a cost effective “Made in the USA” alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ Swing Check can be installed in either horizontal or vertical line with upward flow.

QTY
Add to List
  • Features
  • Renewable bronze seat disc
  • Dezincification resistant
  • 100% cast, machined and assembled in the US
  • Standard/Approvals: ARRA Compliant, ASTM B62 Body/Seat, ASME B1.20.1, ISO 9001:2008, MSS SP-80
  • WARRANTY: 5 Years
