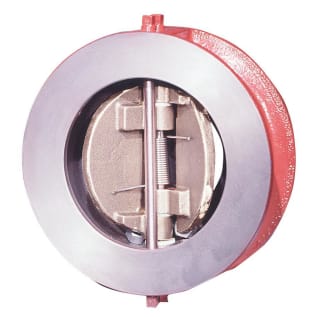

WATTS® 0625503 ICV Silient Dual Disc Wafer Straight Check Valve, 4 in Nominal, 150 lb, Cast Iron Body, PTFE Softgoods, Import

1178450 MFG #: 0625503
$1,036.00 / ea
WATTS® 0625503 ICV Silient Dual Disc Wafer Straight Check Valve, 4 in Nominal, 150 lb, Cast Iron Body, PTFE Softgoods, Import
  • Body Material: Cast Iron
  • Dimensions: 6-7/8 in OD
  • Domestic/Import: Import
  • Inlet to Outlet Length: 2-5/8
  • Nominal Size: 4
  • Pressure Class: 150
  • Pressure Rating: 200
  • Series: ICV
  • Softgoods Material: PTFE
  • Temperature Rating: -40 to 250
  • Trim Material: Aluminum Bronze Disc/EPDM
  • Type: Silient Dual Disc Wafer Straight

WATTS®, 0625503, Check Valve, Silient Dual Disc Wafer Straight, Series: ICV, 4 in Nominal, 200 psi Pressure, 150 lb Pressure Class, -40 to 250 deg F, 2-5/8 in Inlet to Outlet Length, Cast Iron Body, Aluminum Bronze Disc/EPDM Trim, PTFE Softgoods, 6-7/8 in OD Dimensions, Import

This Cast Iron Wafer Check Valve, Watts 4 in Model ICV-125-2-2-T, is used in commercial and industrial HVAC applications to prevent water hammer and reverse fluid flow in water lines. It features a cast iron body with aluminum-bronze disc plate, Buna-N seat, PTFE bearings, stainless steel hinge and stop pins, steel plug and eye bolt, and stainless steel springs. The maximum pressure is 200 PSI.

QTY
Add to List
  • Features
  • Buna-N seat
  • Lightweight and compact design
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • PTFE plate bearing, body bearing, spring bearing
  • EPDM seat bonded to body for leak tight sealing
  • Standard/Approvals: API 594|ASSE Listed|ASTM B148/A126 Class B|FM/NSF/USC Approved|UL/ULC Listed|WQA Certified
  • WARRANTY: Limited
