Apollo™

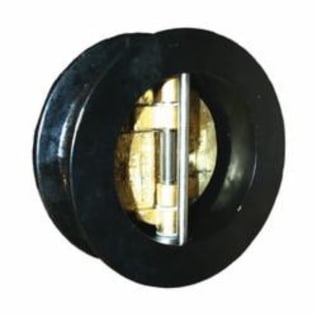

Apollo™ 6WC100N1 6WC Wafer Check Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body

1094113 MFG #: 6WC100N1
$187.78 / ea
Apollo™ 6WC100N1 6WC Wafer Check Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body
  • Body Material: Cast Iron
  • Dimensions: 5.25 in Dia x 2.62 in H
  • End Style: Flanged
  • Finish: Epoxy Coated
  • Flow Rate: 191
  • Nominal Size: 3
  • Pressure Class: 125
  • Pressure Rating: 250
  • Series: 6WC
  • Temperature Rating: 180
  • Trim Material: 316 Stainless Steel/Aluminum Bronze/Buna-N (Nitrile) Seat Ring
  • Type: Wafer

Apollo™, 6WC100N1, Check Valve, Wafer, Series: 6WC, 3 in Nominal, Flanged End Style, 250 psi Pressure, 125 lb Pressure Class, 180 deg F, 191 gpm Flow Rate, Cast Iron Body, 316 Stainless Steel/Aluminum Bronze/Buna-N (Nitrile) Seat Ring Trim, Epoxy Coated, 5.25 in Dia x 2.62 in H Dimensions

QTY
Add to List
  • Features
  • Full port design
  • Compatible with ANSI class 125 and 150 flanges
  • Minimal pressure drop
  • Light weight
  • Spring assisted closing for quicker response
  • Standard/Approvals: NSF/ANSI 61|CSA Certified
