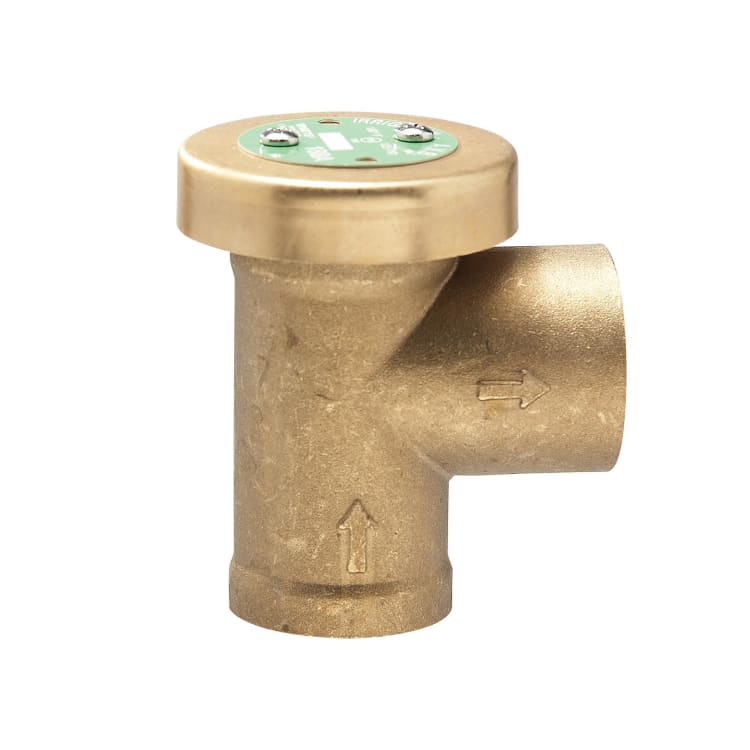

WATTS® 0340972 Anti-Siphon Vacuum Breaker, 1 in Nominal, FNPT End Style, Brass Body, Domestic

948011 MFG #: 0340972
$312.00 / ea
WATTS® 0340972 Anti-Siphon Vacuum Breaker, 1 in Nominal, FNPT End Style, Brass Body, Domestic
  • Body Material: Brass
  • Dimensions: 3-13/16 in H
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Nominal Size: 1
  • Pressure Rating: 125
  • Series: 188A
  • Temperature Rating: 180
  • Type: Anti-Siphon

WATTS® Vacuum Breaker, Anti-Siphon, 1 in Nominal, FNPT, 125 psi, 180 deg F, Brass Body, 3-13/16 in H, Domestic

This 1 in anti-siphon vacuum breaker is designed to prevent the backsiphonage of contaminated water from entering into the potable water supply. It is ideal for low flow non-continuous pressure installations such as residential irrigation systems or laboratory equipment. This vacuum breaker consists of a brass body with bronze internal trim, chemical resistant seat disc and an atmospheric vent to prevent spilling. The durable silicone disc is suitable for temperatures up to 180 deg F and ensures tight seating with the lightest of seating contacts. The maximum working pressure is 125 psi.

QTY
Add to List
  • Features
  • Female NPT inlet and outlet
  • Easy to install
  • Trim material-Silicone seat/Bronze internal trim
  • Standard/Approvals: ASSE 1001|ANSI A112.1.1|cCSAus B64.1.1|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
  • WARRANTY: 1 year Limited
