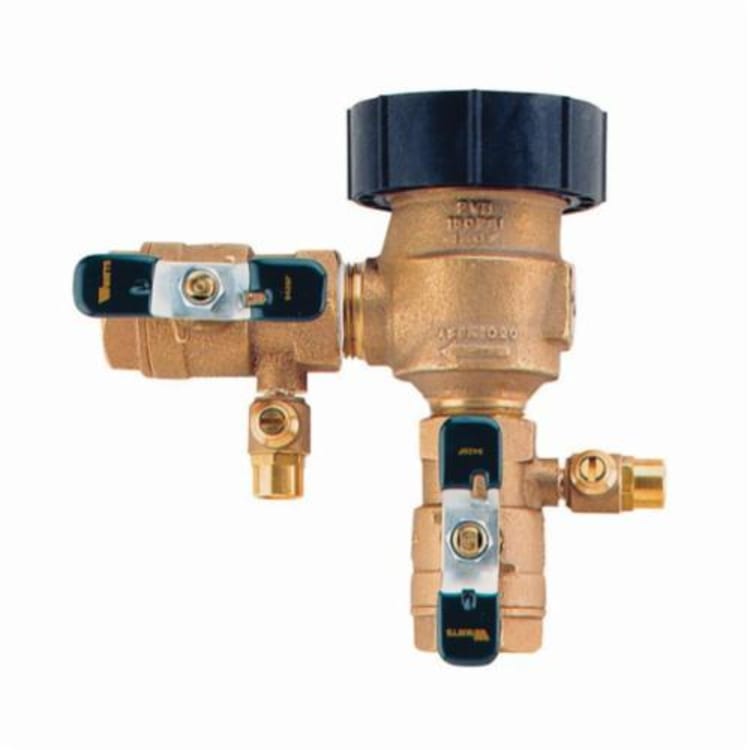

WATTS® 0387126 800M4QT Anti-Siphon Pressure Vacuum Breaker, 1-1/4 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Bronze Body, Vacuum Breaker, 7.5 fps Flow Rate, Domestic
- Body Material: Bronze
- Dimensions: 8-7/8 in L x 9 in H
- Domestic/Import: Domestic
- End Style: FNPT
- Flow Rate: 7.5
- Nominal Size: 1-1/4
- Port Type: Drain/Blow Down
- Pressure Rating: 150
- Series: 800M4QT
- Temperature Rating: 33 to 140
- Type: Anti-Siphon
WATTS®, 0387126, Pressure Vacuum Breaker, Anti-Siphon, Series: 800M4QT, 1-1/4 in Nominal, FNPT End Style, 150 psi Pressure, 33 to 140 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Vacuum Breaker Backflow, Drain/Blow Down Port, Media: Water, Bronze Body, 8-7/8 in L x 9 in H Dimensions, Domestic
Series 800M4QT Anti-Siphon Pressure Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of bronze body construction, silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber O-ring seal, a lightweight plastic disc float, tee handle or lever handle shutoffs, and test cocks for winterization draining. Series 800M4QT is ideal in health hazard continuous pressure applications such as irrigation systems and industrial process water systems where the water enters the equipment at or below its flood rim. Maximum Pressure:150 psi (10.3 bar), Minimum Pressure: 15 psi (55 kPa).
- Features
- Bronze body construction for durability and long life
- Compact space saving design
- Designed for reliable long-lasting performance with a silicone rubber sealing float O-ring and seal check disc that are resistant to heat, shock and chemicals
- Female NPT inlet and outlet with quarter turn shut-offs
- Easy maintenance of internal parts
- The test cocks are conveniently positioned for easy testing and winterization
- Replaceable plastic seat
- O-ring bonnet seal for less possibility of fouling
- Internal parts are easy to access and service with no special tools required
- Silicone seat disc for durability
- The acetal bonnet acts as a freeze plug to prevent costly body damage
- Standard/Approvals: ANSI/ASSE 1020|Approved by the foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California|cCSAus Certified|UPC Listed|USC Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 Year Limited
