WATTS®

WATTS® 0062020 007 Inline Double Check Valve Assembly, 3/4 in Nominal, Female Threaded NPT End Style, Quarter-Turn Ball Valve, Bronze Body, 7.5 fps Flow Rate, Domestic

40295 MFG #: 0062020
$568.00 / ea

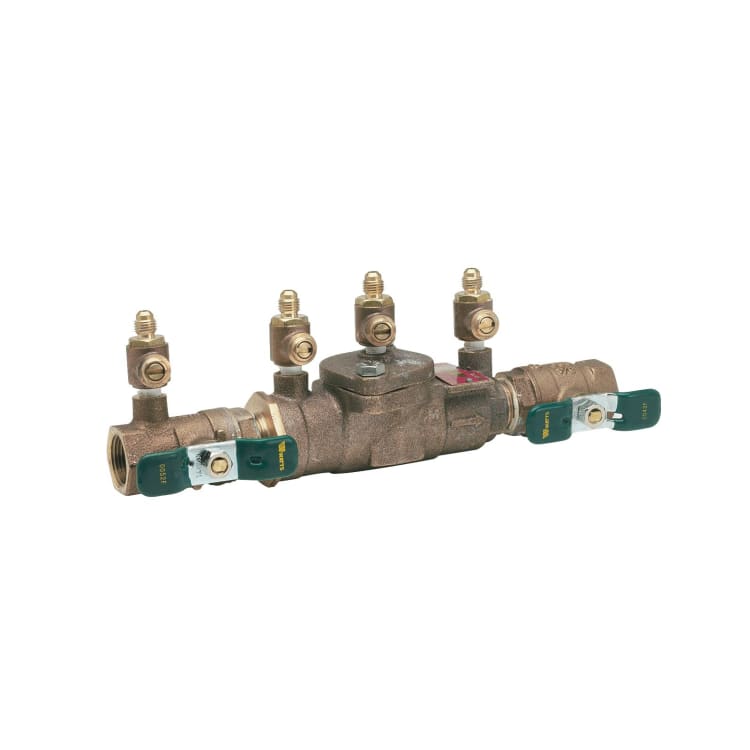

WATTS® 0062020 007 Inline Double Check Valve Assembly, 3/4 in Nominal, Female Threaded NPT End Style, Quarter-Turn Ball Valve, Bronze Body, 7.5 fps Flow Rate, Domestic
  • Ball Valve/Gate Valve type: Quarter-Turn Ball Valve
  • Body Material: Bronze
  • Dimensions: 11-1/8 in L x 4 in H
  • Domestic/Import: Domestic
  • Nominal Size: 3/4
  • Pressure Rating: 175
  • Series: 007
  • Temperature Rating: 33 to 180

WATTS®, 0062020, Double Check Valve Assembly, Inline, Series: 007, 3/4 in Nominal, Female Threaded NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Media: Water, Bronze Body, 11-1/8 in L x 4 in H Dimensions, Domestic

Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.

QTY
Add to List
  • Features
  • Bronze body for durability
  • Ease of maintenance only one cover
  • Replaceable seats and seat discs
  • Quarter turn ball valve shutoffs
  • Cast bronze construction
  • Top mounted resilient seated test cocks
  • Modular compact design
  • Low pressure drop
  • Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1015|AWWA C510|CSA B64.5|IAPMO PS31|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
  • INCLUDES: (4) Test Cocks, Tee Handle, (2) Positive Seating Check Modules With Captured Springs and Rubber Seat Discs
  • WARRANTY: 1 Year Limited
