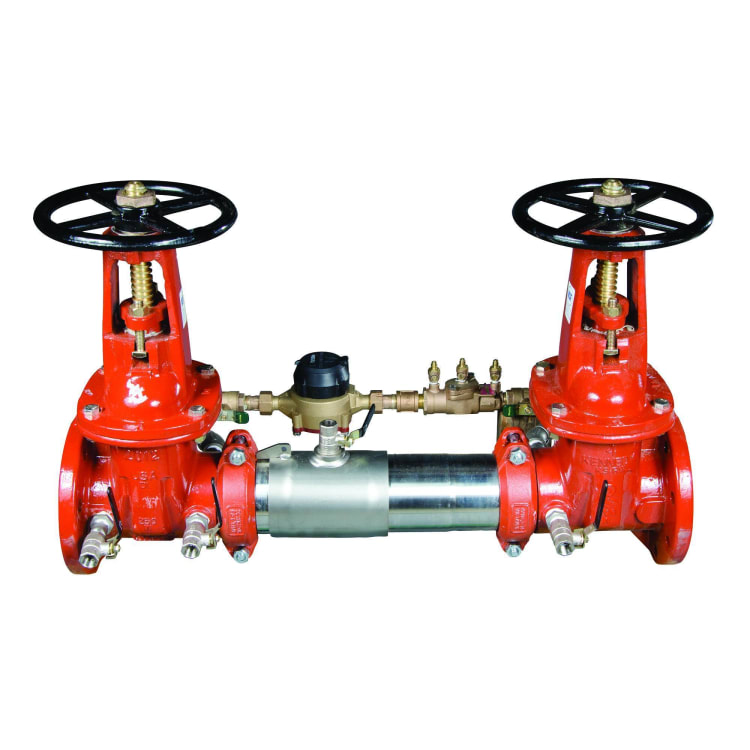

WATTS® 0122712 LF757DCDA Detector Assembly, 6 in, Flange, Resilient Seated Gate Valve, 304 Stainless Steel Body, Double Check Backflow, 150 lb

WATTS® Lead Free Detector Assembly, Series: LF757DCDA, 6 in Nominal, Flange, 175 psi Working, 150 lb, 33 to 140 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve type, Double Check Backflow Type, 304 Stainless Steel Body, 43-1/2 in L x 19 in W

This 6 in lead free testable double check detector assembly prevents the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. Its compact housing consists of two independently operating tri-link check valves, two shutoff valves and four test cocks. It features a stainless steel housing and sleeve and is 70 percent lighter than traditional designs. It is designed for non-health hazard applications and may be installed under continuous pressure service to protect against both backpressure and backsiphonage. It is used primarily on fire sprinkler lines when it is necessary to monitor unauthorized use of water. It has outside stem and yoke shutoff valves and a cubic ft meter. The maximum working pressure is 175 psi.
