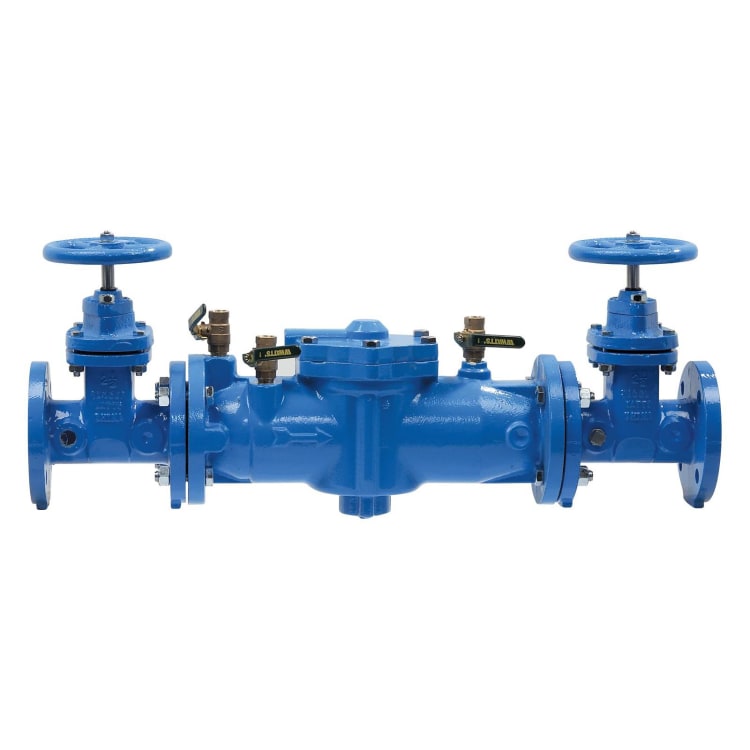

WATTS® 0122614 LF007 Double Check Valve Assembly, 2-1/2 in, Resilient Seated Gate Valve, Cast Iron Body

WATTS® Lead Free Double Check Valve Assembly, Series: LF007, 2-1/2 in Nominal, 175 psi Working, 33 to 110 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve type, Cast Iron Body, Fused Epoxy Coated, 33-1/8 in L

This 2-1/2 in lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. This assembly consists of a fused epoxy coated cast iron body, non-rising stem resilient seated gate valves, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.
