Sloan®

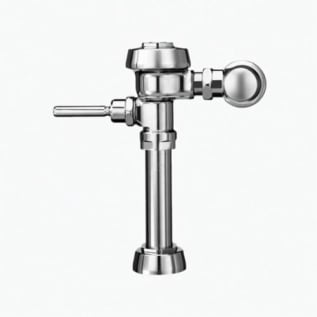

Sloan® Royal® 3910168 ROYAL 111 Single Flush Manual Exposed Flushometer, 1.28 gpf, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic

949236 MFG #: 3910168
$395.63 / ea
Sloan® Royal® 3910168 ROYAL 111 Single Flush Manual Exposed Flushometer, 1.28 gpf, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Finish/Color: Polished Chrome
  • Fixture Type: Water Closet
  • Flush Rate: 1.28
  • Inlet Size: 1 in IPS
  • Material: Semi-Red Brass
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Series: 111
  • Spud Coupling: 1-1/2
  • Type: Single-Flush
  • Valve Design: Diaphragm
  • Handle Type: Non-Hold Open Oscillating

Sloan® Royal® Manual Exposed Flushometer, Single Flush, Series: ROYAL 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Exposed Water Closet Flushometer, for floor mounted or wall hung top spud bowls.

QTY
Add to List
  • Features
  • PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
  • ADA compliant metal oscillating non-hold-open handle with triple seal handle packing
  • Spud coupling and flange for 1-1/2 in top spud
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Non-hold-open handle, fixed metering by-pass and no external volume adjustment to ensure water conservation
  • Flush accuracy controlled by CID™ technology
  • Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
  • 1 in IPS screwdriver Bak-Chek® stop with free spinning, vandal resistant stop cap
  • Valve body, cover and tailpiece shall be in conformance with ASTM Alloy classification for semi-red brass
  • ROYAL 111-1.28
  • Standard/Approvals: ADA Compliant, BAA Compliant, cUPC Certified, cUPC Green Certified, Satisfies LEED Credits, WaterSense Listed, Valve Shall be in Compliance with the Applicable Sections of ASSE 1037
