Sloan®

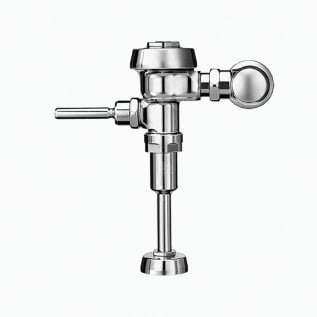

Sloan® Royal® 3912633 ROYAL 186 Single Flush Manual Exposed Flushometer, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, Polished Chrome, Domestic

1208775 MFG #: 3912633
$395.63 / ea
Sloan® Royal® 3912633 ROYAL 186 Single Flush Manual Exposed Flushometer, 0.125 gpf, 3/4 in IPS Inlet, 3/4 in Spud, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Urinal
  • Flush Rate: 0.125
  • Inlet Size: 3/4 in IPS
  • Material: Semi-Red Brass
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Series: 186
  • Spud Coupling: 3/4
  • Type: Single-Flush
  • Valve Design: Diaphragm
  • Handle Type: Non-Hold Open Oscillating

Sloan® Royal® Manual Exposed Flushometer, Single Flush, Series: ROYAL 186, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

QTY
Add to List
  • Features
  • PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
  • ADA compliant metal oscillating non-hold-open handle with triple seal handle packing
  • 3/4 in IPS screwdriver Bak-Chek® angle stop with Free spinning, vandal resistant stop cap
  • Spud coupling and flange for 3/4 in top spud
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Non-hold-open handle, fixed metering by-pass and no external volume adjustment to ensure water conservation
  • Flush accuracy controlled by CID™ technology
  • Diaphragm, handle packing, stop seat and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
  • Dual by-pass
  • ROYAL 186-0.125 DBP
  • Standard/Approvals: ADA Compliant|BAA Compliant|cUPC Listed|cUPC Green Certified|Satisfies LEED Credits|WaterSense Listed
