Sloan®

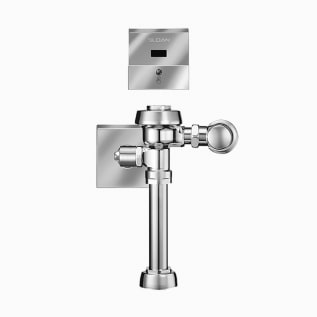

Sloan® Royal® 3450049 ROYAL 111 ESS Sensor Exposed Flushometer, 1.2 gpf, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic

971069 MFG #: 3450049
$1,445.93 / ea
Sloan® Royal® 3450049 ROYAL 111 ESS Sensor Exposed Flushometer, 1.2 gpf, 1 in IPS Inlet, 1-1/2 in Spud, Polished Chrome, Domestic
  • Collection: Optima®
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Water Closet
  • Flush Rate: 1.2
  • Inlet Size: 1 in IPS
  • Material: Semi-Red Brass
  • Power Source: Hardwired
  • Pressure Rating: 15 to 80
  • Rough-In Size: 11-1/2
  • Sensor Range: 22 to 42
  • Series: 111 ESS
  • Spud Coupling: 1-1/2
  • Type: Single-Flush
  • Valve Design: Diaphragm
  • Handle Type: Non-Hold Open

Sloan® Royal® Sensor Exposed Flushometer, Series: ROYAL 111 ESS, Water Closet Fixture, 1.2 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, Diaphragm, Connection Location: Top Spud, 22 to 42 in Sensor, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Sensor Activated Sloan® Model Water Closet Flushometer, for floor mounted or wall hung top spud bowls.

QTY
Add to List
  • Features
  • PERMEX® Synthetic rubber diaphragm with dual filtered fixed bypass
  • Flush accuracy controlled by CID technology
  • Handle packing, main seat, stop seat and Vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • User friendly three (3) second flush delay
  • Sweat solder adapter w/cover tube and cast wall flange w/set screw
  • Courtesy flush® override button
  • Optima® EL-1500 self-adaptive infrared sensor with indicator light
  • Die cast sensor plate with no visible fasteners
  • High back pressure Vacuum breaker flush connection with one piece bottom hex coupling nut, spud coupling and flange for 1½” top spud
  • Non-hold-open integral solenoid operator, fixed metering bypass and no external volume adjustment to ensure water conservation
  • 1 in IPS Screwdriver Bak-Chek® angle stop with free spinning vandal resistant stop cap
  • Electrical override
  • ROYAL 111-1.28 ESS
  • Electronic sensor solenoid operated
  • Standard/Approvals: Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME A112.19.2, Installation conforms to ADA requirements, BAA Compliant, cUPC Certified, cUPC Green Registerd, UL 376U, Watersense Certified
