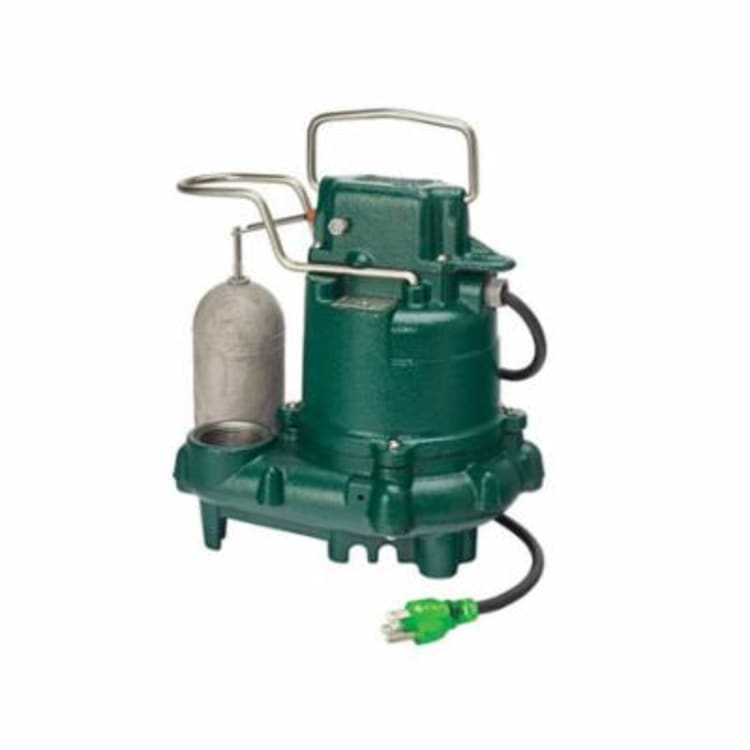

Zoeller® 63-0001 M63 Automatic Submersible Pump With Single Seal, 43 gpm, 1-1/2 in NPT Outlet, 1/3 hp, Cast Iron, Domestic
- Amperage Rating: 9.7
- Bearing Type: Sleeve
- Color: Green
- Cord Type: 3-Wire
- Dimensions: 10-3/32 in W x 10-1/16 in H
- Domestic/Import: Domestic
- Finish: Powder Epoxy Coated
- Float Material: Polypropylene
- Flow Rate: 43
- Horsepower: 1/3
- Impeller Type: Non-Clogging Vortex
- Material: Cast Iron
- Maximum Diameter of Solids: 1/2
- Maximum Head: 19-1/4
- Outlet Size: 1-1/2 in NPT
- Series: M63
- Temperature Rating: 130
- Type: Automatic
- Voltage Rating: 115
- Phase: 1
Zoeller® Submersible Pump, Automatic, Series: M63, 43 gpm, 1-1/2 in NPT Outlet, 19-1/4 ft Maximum Head, 115 VAC, 9.7 A, 130 deg F, 1/3 hp, Non-Clogging Vortex Impeller, Polypropylene Float, 3-Wire Cord, Sleeve Bearing, 1/2 in Maximum Dia of Solids, Cast Iron, Green, Powder Epoxy Coated, 10-3/32 in W x 10-1/16 in H, Domestic
These Premium sump pumps are designed with the very best materials and latest technology. Based on the 50 series sump pump, considered one of America’s most popular sump pumps, this product offers advanced switch technology allowing longer switch life. This model is constructed of the same heat-dissipating cast iron with powder coated epoxy finish, providing maximum pumping performance under the most extreme conditions. With Zoeller’s cool run design, the hermetically-sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product. The heavy-duty power cord also includes an LED lighted plug.
- Features
- Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
- Corrosion-resistant, powder coated epoxy finish
- All cast iron construction
- FKM outer switch boot
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Watertight, neoprene square ring between motor and pump housing
- Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure-tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering 130 deg F
- Passes 1/2 in (12 mm) spherical solids
- Watertight and dust-tight
- Permanently oiled bearings
- Cast iron impeller
- Solid, buoyant, polypropylene float
- Single phase motor
- Oil filled cooling
- Standard/Approvals: AISI 1215 Motor Shaft, cCSAus Certified, CSA Certified, C22.2 No. 108, SSPMA Standard, UL 778
- INCLUDES: 2-Pole Mechanical Switch, Stainless Steel Float Guard and Switch Arm, Solid Buoyant Polypropylene Float, Stainless Steel Handle and 10 ft Cord with Grounded Plug
